MRS16000C2002FC100
ActiveVishay Dale
RES 20K OHM 0.4W 1% AXIAL
MRS16000C2002FC100
ActiveVishay Dale
RES 20K OHM 0.4W 1% AXIAL
Description
General part information
MRS16000C2002FC100

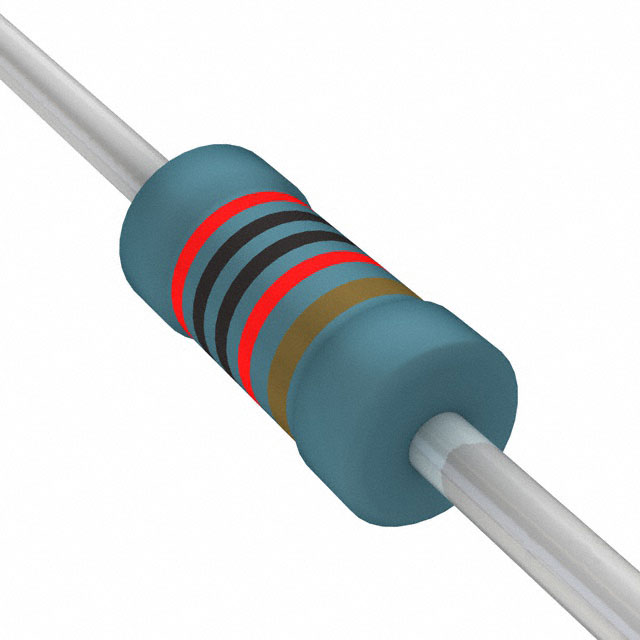

20 kOhms ±1% 0.4W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MRS16000C2002FC100 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.4 W |
| Resistance | 20 kOhm |
| Size / Dimension Diameter | 0.063 in |
| Size / Dimension Length | 0.142 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
