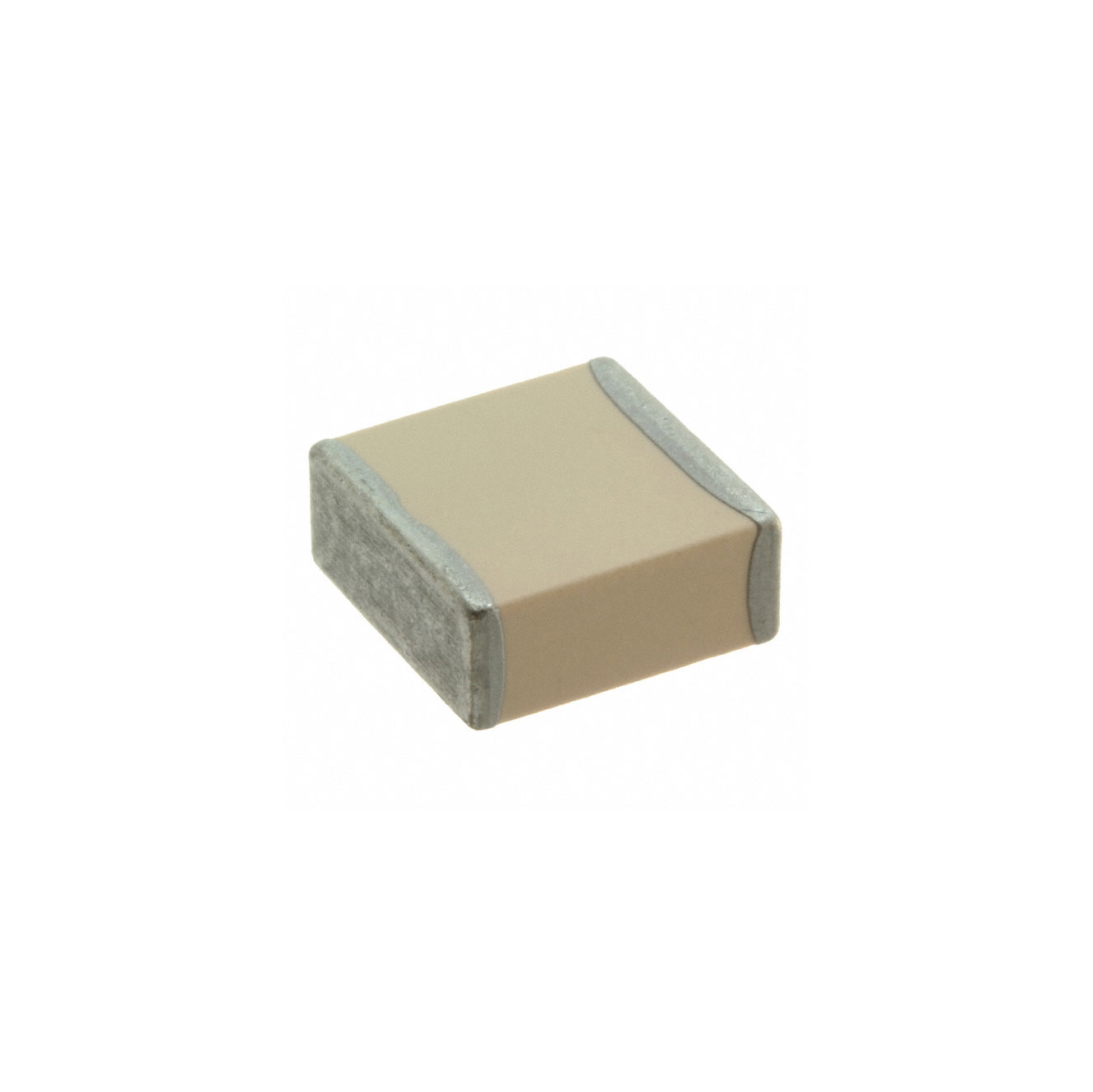

100E101GTN3600XJ24
ActiveKYOCERA AVX
CAP CER 100PF 3.6KV P90 3838
100E101GTN3600XJ24
ActiveKYOCERA AVX
CAP CER 100PF 3.6KV P90 3838
Description
General part information
100E101GTN3600XJ24
100 pF ±2% 3600V (3.6kV) Ceramic Capacitor P90 3838 (9797 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 100E101GTN3600XJ24 |
|---|---|
| Applications | RF, Bypass, Decoupling, High Frequency, Microwave |
| Capacitance | 100 pF |
| Features | High Q, Non-Magnetic, Low Loss, Low ESL, High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 3838 (9797 Metric) |
| Size / Dimension Length | 0.38 in |
| Size / Dimension Width | 0.38 in |
| Temperature Coefficient | P90 |
| Thickness (Max) | 0.17 in |
| Tolerance | 2 % |
| Voltage - Rated | 3600 V |
