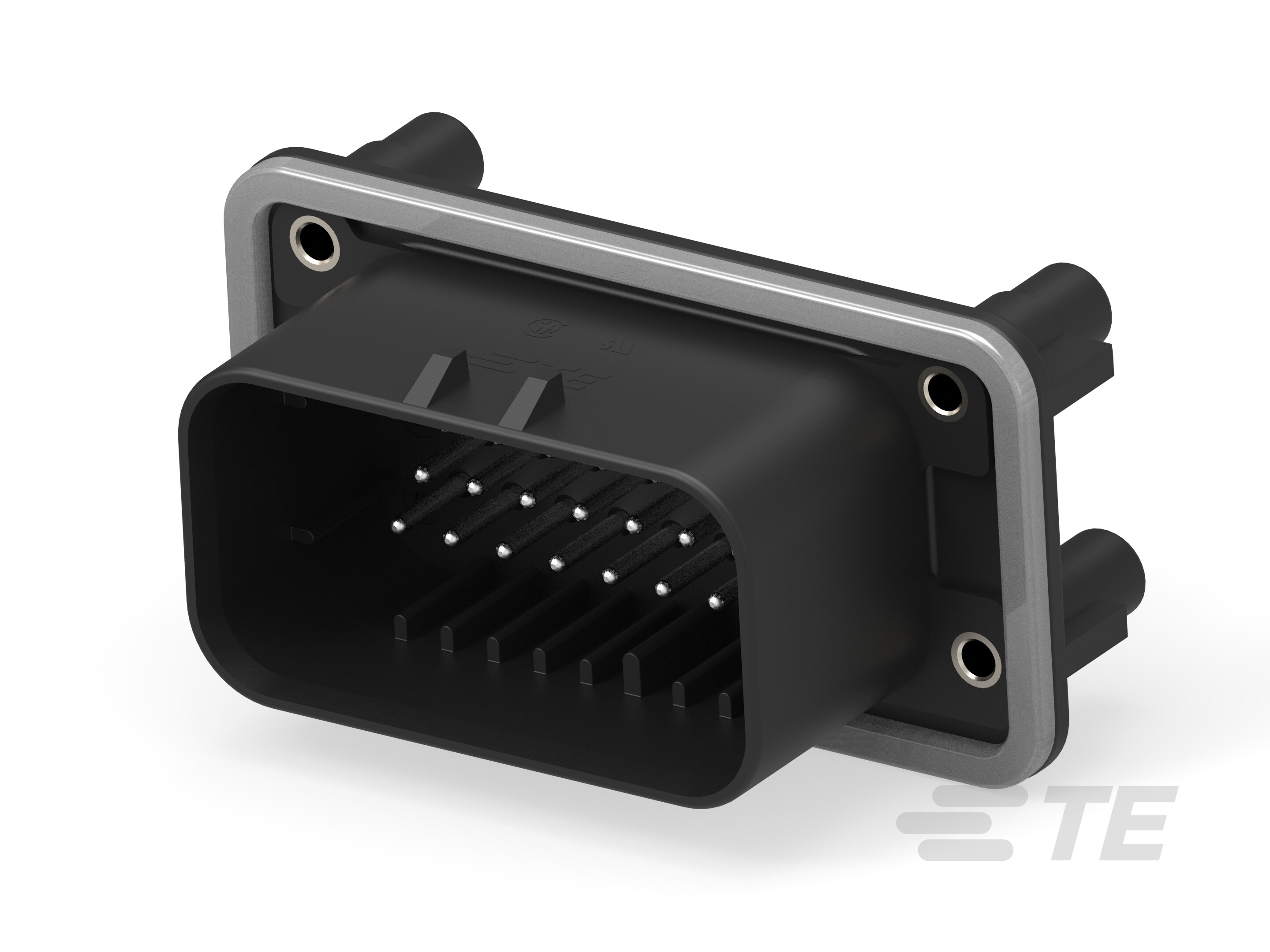

Specification	2445465-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.297 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	8 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Panel Mount, Through Hole
Number of Positions	23
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.157 in
Row Spacing - Mating	0.157 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating (AC)	250 VAC
Voltage Rating (DC)	159 VDC

AMPSEAL Series

...

Part	Row Spacing - Mating	Termination	Number of Rows	Number of Positions Loaded	Shrouding	Contact Type	Mounting Type	Pitch - Mating	Contact Finish - Mating	Current Rating	Features	Fastening Type	Voltage Rating (AC)	Voltage Rating (DC)	Insulation Material	Number of Positions	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Post	Insulation Color	Style	Contact Material	Contact Shape	Pitch	Contact Termination	Color	Note	Row Spacing	Voltage Rating	Current Rating	Applications	Contact Length - Post	Insulation Height	Accessory Type	For Use With/Related Products
TE Connectivity AMP Connectors 2492561-1	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Through Hole	0.157 in	Tin	8 A	Mounting Flange	Locking Ramp	250 VAC	159 VDC	Glass Filled Polybutylene Terephthalate (PBT)	8	Header	-40 °C	105 °C	Tin	Black	Board Cable/Wire	Brass	Circular
TE Connectivity AMP Connectors 2371884-4			3			Female Socket	Free Hanging (In-Line)				Connector Position Assurance (CPA) Terminal Position Assurance (TPA)	Latch Holder			Polybutylene Terephthalate (PBT)	23	Plug	-40 °C	105 °C						0.157 in	Crimp	Gray
TE Connectivity AMP Connectors 776164-6			3			Female Socket	Free Hanging (In-Line)					Latch Lock			Polybutylene Terephthalate (PBT)	35	Plug								0.157 in	Crimp	Orange	Contacts Not Included	0.157 in
TE Connectivity AMP Connectors 1-776231-4	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Through Hole	0.157 in	Gold-Palladium	0 A	Mounting Flange Sealed	Locking Ramp			Glass Filled Polybutylene Terephthalate (PBT)	35	Header	-40 °C	125 °C		Gray	Board Cable/Wire	Brass	Circular						250 V	Varies by Wire Gauge
TE Connectivity AMP Connectors 1-776228-2	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Through Hole	0.157 in	Gold-Palladium	0 A	Mounting Flange Sealed	Locking Ramp			Glass Filled Polybutylene Terephthalate (PBT)	23	Header	-40 °C	125 °C		Natural	Board Cable/Wire	Brass	Circular						250 V	Varies by Wire Gauge	Automotive Industrial
TE Connectivity AMP Connectors 2489696-1	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Right Angle Through Hole	0.157 in	Tin	8 A	Mounting Flange	Locking Ramp	250 VAC	159 VDC	Glass Filled Polybutylene Terephthalate (PBT)	8	Header	-40 °C	105 °C	Tin	Black	Board Cable/Wire	Brass	Circular									0.157 in	1.264 in
TE Connectivity AMP Connectors 776180-2	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Right Angle Through Hole	0.157 in	Tin	0 A	Board Guide Sealable	Locking Ramp			Glass Filled Polybutylene Terephthalate (PBT)	35	Header	-40 °C	105 °C		Natural	Board Cable/Wire	Brass	Circular						250 V	Varies by Wire Gauge	Automotive Industrial
TE Connectivity AMP Connectors 2389807-1																35																			Strain Relief
TE Connectivity AMP Connectors 776164-1			3			Female Socket	Free Hanging (In-Line)					Latch Lock			Polybutylene Terephthalate (PBT)	35	Plug								0.157 in	Crimp	Black	Contacts Not Included	0.157 in
TE Connectivity AMP Connectors 2458826-1											Sealed																								Cap (Cover)	AMPSEAL Connectors
