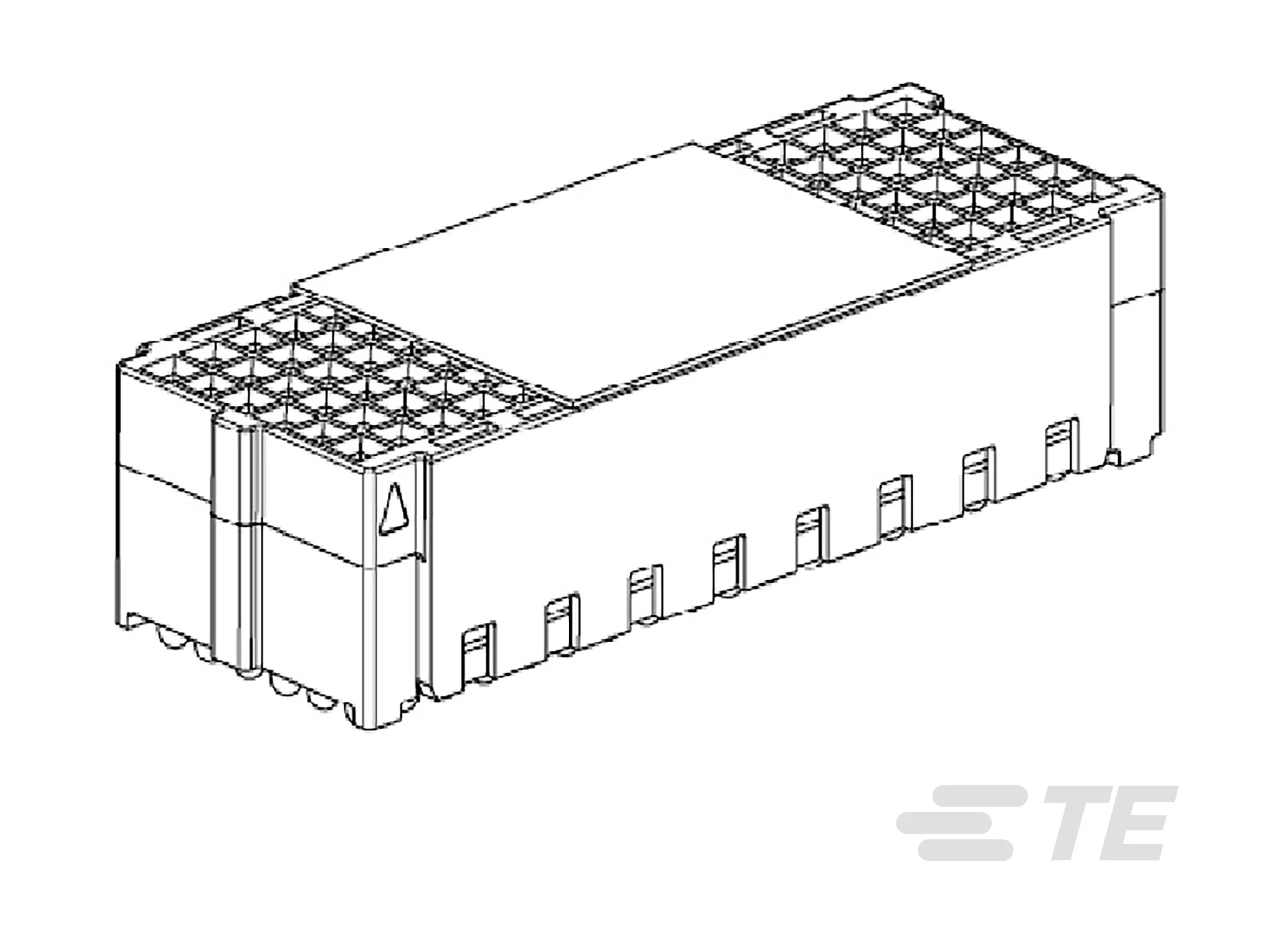

MEZALOK, SOCKET, 114P, 17MM, 50AU, TL-1-2102061-7

1-2102061-7

Active
TE Connectivity AMP Connectors

BOARD TO BOARD & MEZZANINE CONNECTORS MEZALOK, SOCKET,114P 17MM, 50AU, TL

Find alt
MEZALOK, SOCKET, 114P, 17MM, 50AU, TL-1-2102061-7

1-2102061-7

Active
TE Connectivity AMP Connectors

BOARD TO BOARD & MEZZANINE CONNECTORS MEZALOK, SOCKET,114P 17MM, 50AU, TL

Find alt

Description

General part information

AMP Mezalok Series

PCB Mount Receptacle, Vertical, Board-to-Board, 114 Position, 1.27 mm [.05 in] Centerline, Gold (Au), Surface Mount - Solder Ball, Beige, AMP Mezalok

Technical Specifications

Parameters and characteristics for this part

Specification1-2102061-7
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thickness - Mating50 µin
Contact TypeFemale Socket
Current Rating1.5 A
Fastening TypePush-Pull
FeaturesPick and Place
Insulation ColorNatural
Insulation Height0.669 in
Mounting TypeSurface Mount
Number of Positions114
Number of Positions LoadedAll
Number of Rows6
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch - Mating0.05 in
Row Spacing - Mating0.05 in
StyleBoard
TerminationSolder
Voltage Rating250 V
