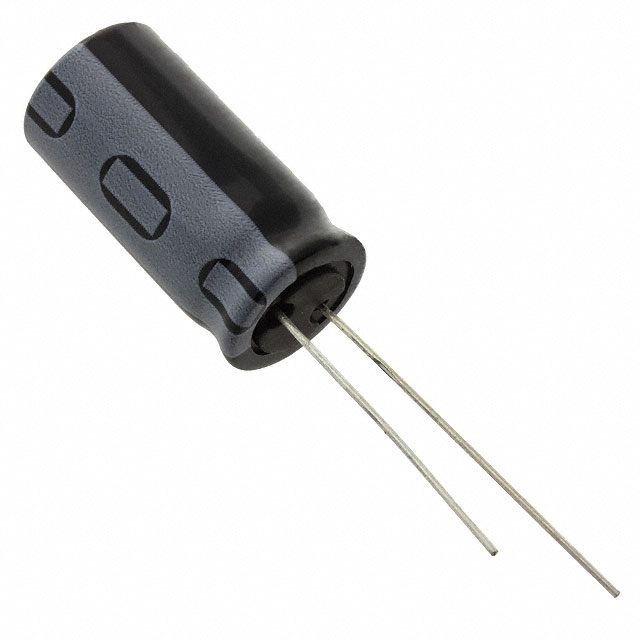

Specification	B41896C4228M008

Applications	Automotive
Capacitance	2200 ĄF
ESR (Equivalent Series Resistance)	109 mOhm
Height - Seated (Max)	1.26 in
Impedance	26 mOhms
Lead Spacing	0.197 in
Lifetime	7000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	2.86 A
Size / Dimension Diameter	0.492 in
Tolerance	20 %
Voltage - Rated	16 V
