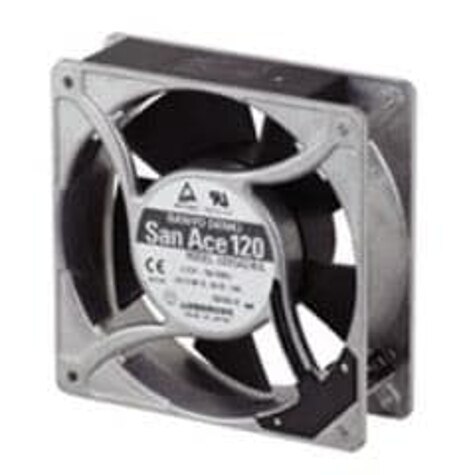

Specification	109S429UL-20

Air Flow	83 CFM
Approval Agency	TUV, UR, CE, PSE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Noise	40 dB
Operating Temperature (Max)	140 °F
Operating Temperature (Min)	14 °F
Power (Watts)	12 W
RPM	2700 RPM
Size / Dimension Height	120 mm
Size / Dimension Length	120 mm
Size / Dimension Shape	Square
Static Pressure	0.197 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	100 VAC/DC
Width	38 mm

9S Type Series

Part	Noise	Voltage - Rated	Width	Termination Leads Count	Termination Type	Termination	Features	Fan Type	Static Pressure	Approval Agency	Air Flow	Bearing Type	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	RPM	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Lifetime	Material - Frame	Material - Blade	Weight	Lifetime	Termination Count	Material	Fan Accessory Type	Fits Fan Size	Fits Fan Size (Shape)	Fits Fan Size Width	Fits Fan Size Length
Sanyo Denki America Inc. 109S486-20	27 dB	100 VAC/DC	25 mm	3	Wire Leads	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	0.075 in H2O	CE CSA PSE TUV UR	44.2 CFM	Ball	120 mm	Square	120 mm	10 W	140 °F	14 °F	1600 RPM	120 mA	90 VAC	110 VAC	Varies Based on Temperature	Aluminum	Plastic
Sanyo Denki America Inc. 109S425UL-30	43 dB	230 VAC	38 mm	3	Wire Leads	3 Wire Leads	Alarm	Tubeaxial	0.264 in H2O	CE PSE TUV UL	95.4 CFM	Ball	119 mm	Square	119 mm	12 W	140 °F	14 °F	3100 RPM	70 mA				Aluminum	Plastic	1.3 lbs	25000 Hrs
Sanyo Denki America Inc. 109S050	33 dB	100 VAC/DC	25 mm			2 Terminals		Tubeaxial	0.154 in H2O	CE CSA PSE TUV UL	26.9 CFM	Ball	80 mm	Square	80 mm	7 W	140 °F	-22 °F	3100 RPM							0.595 lb		2
Sanyo Denki America Inc. 109S492-30	38 dB	200 VDC	25 mm	3	Wire Leads	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	0.197 in H2O	CE CSA PSE TUV UR	38.9 CFM	Ball	92 mm	Square	92 mm	10 W	140 °F	14 °F	3100 RPM
Sanyo Denki America Inc. 109S487-30	41 dB	230 VAC	25 mm	3	Wire Leads	3 Wire Leads	Alarm	Tubeaxial	0.216 in H2O	CE PSE TUV UL	81.3 CFM	Ball	119 mm	Square	119 mm	12 W	140 °F	14 °F	2900 RPM	60 mA				Aluminum	Plastic	0.86 lb	25000 Hrs
Sanyo Denki America Inc. 109S091	38 dB	100 VAC/DC	25 mm			2 Terminals		Tubeaxial	0.197 in H2O	CE CSA PSE TUV UL	38.9 CFM	Ball	92 mm	Square	92 mm	7 W	140 °F	-22 °F	3100 RPM	0.09 A				Aluminum	Plastic	0.639 lb	25000 Hrs	2
Sanyo Denki America Inc. 109S425UL-20	43 dB	230 VAC	38 mm	3	Wire Leads	3 Wire Leads	Alarm	Tubeaxial	0.264 in H2O	CE PSE TUV UL	95.4 CFM	Ball	119 mm	Square	119 mm	12 W	140 °F	14 °F	3100 RPM							1.3 lbs
Sanyo Denki America Inc. 109S478UL-30	45 dB	200 VDC	38 mm	3	Wire Leads	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	0.276 in H2O	CE CSA PSE TUV UR	102.4 CFM	Ball	120 mm	Square	120 mm	16 W	140 °F	14 °F	3100 RPM	100 mA			Varies Based on Temperature	Aluminum	Plastic
Sanyo Denki America Inc. 109S424UL-30	43 dB	115 V	38 mm	3	Wire Leads	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	0.264 in H2O	CE CSA PSE TUV UR	95.4 CFM	Ball	120 mm	Square	120 mm	12 W	140 °F	14 °F	3100 RPM	140 mA	103.5 VAC	126.5 VAC	Varies Based on Temperature	Aluminum	Plastic
Sanyo Denki America Inc. 109-018																													Stainless Steel	Filter Guard Assembly	120 mm	Sq	120 mm	120 mm
