WIHA

SCREWDRIVER BLADE, INTERCHANGEABLE, IP20 TORXPLUS, 6.89" LENGTH, STEEL, TORQUEFIX/TORQUEVARIO HANDLE

Find alt
28618

28618

Obsolete
WIHA

SCREWDRIVER BLADE, INTERCHANGEABLE, IP20 TORXPLUS, 6.89" LENGTH, STEEL, TORQUEFIX/TORQUEVARIO HANDLE

Find alt

Description

General part information

28618

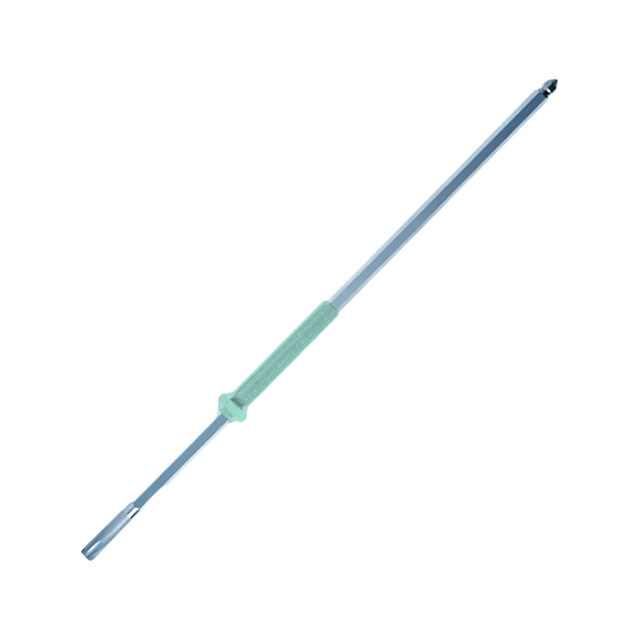

28618 is a IP20 MagicSpring TorxPlus TorqueControl blade. It is designed to be used with Wiha TorqueVario, TorqueFix, and iTorque, screwdriver handles only. This is not for use in Wiha in insulated torque handles, esd torque handles, T-handles, or torque wrenches. Wiha MagicSpring retaining spring TorxPlus screws are kept firmly where user want them. The retaining spring MagicSpring together with a thin cover disc, is laser-welded to the tip of the blade. This acts as a clamp between tool and TorxPlus screw, so that the latter is firmly gripped by the tip of the blade. This is especially beneficial when turning particularly small screws or when screw in areas that are difficult to access. The torque blade can be inserted into the Wiha torque screwdriver handles to create a solid screwdriver handle with a torque setting. The fixed blade eliminates the potential for play and wobble caused when using a bit or bit adapter.

Technical Specifications

Parameters and characteristics for this part

Specification28618
Drive Size0.15625 in
Length - Overall6.89 in
Quantity1 Piece
Tip SizeIP20
Tip TypeTorxPlus®
Tool TypeBlade
Torque70.8 in-lbs
Weight0.07 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources
