HHR-150AAB01F9
UnknownPanasonic Energy

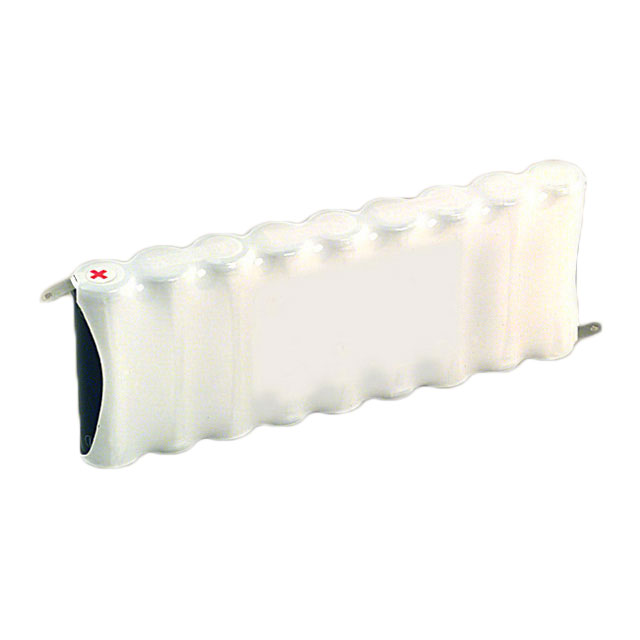

BATTERY PACK NIMH 10.8V AA
HHR-150AAB01F9
UnknownPanasonic Energy
BATTERY PACK NIMH 10.8V AA
Description
General part information
HHR-150AAB01F9
AA 10.8 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HHR-150AAB01F9 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 1.5 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 9 |
| Rechargeability | Yes |
| Size / Dimension Height | 1.99 in |
| Size / Dimension Length | 5.14 in |
| Size / Dimension Width | 0.57 in |
| Structure | Side to Side |
| Structure Cells | 9 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 10.8 V |
| Weight | 234.96 g |
