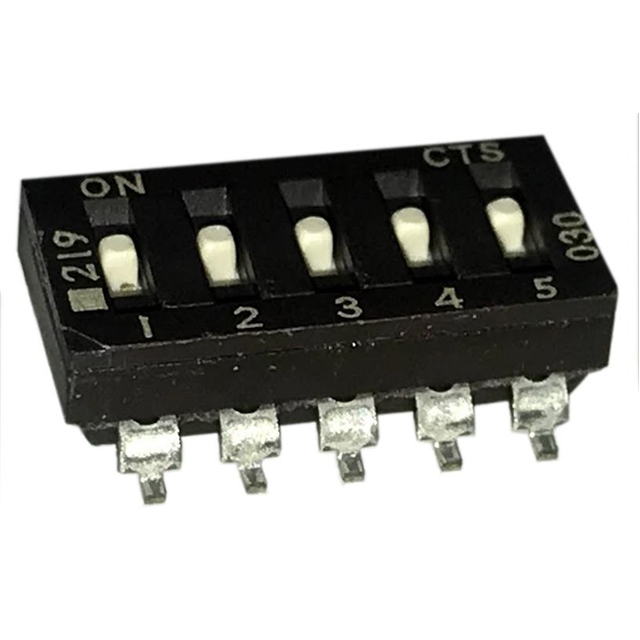

219-5LPSR
ActiveCTS Electrocomponents
SWITCH SLIDE DIP SPST 0.1A 20V
219-5LPSR
ActiveCTS Electrocomponents
SWITCH SLIDE DIP SPST 0.1A 20V
Description
General part information
219-5LPSR
Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 100mA 20VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 219-5LPSR |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Current Rating | 100 mA |
| Electrical Life (Cycles) | 2000 Cycles |
| Features | Epoxy Sealed Terminals |
| Height Above Board | 0.16 in |
| Length | 0.558 in |
| Mounting Type | Surface Mount |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | Gull Wing |
| Voltage Rating | 20 VAC |
| Washable | No |
