LCAD30039
ActivePasternack

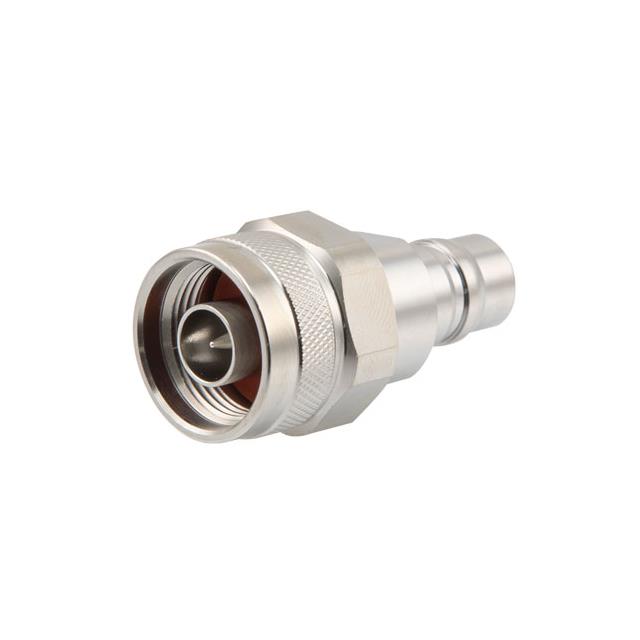

N MALE TO QN FEMALE LOW PIM ADAP
LCAD30039
ActivePasternack
N MALE TO QN FEMALE LOW PIM ADAP
Description
General part information
LCAD30039
Adapter Coaxial Connector QN Jack, Female Socket To N Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LCAD30039 |
|---|---|
| Adapter Series | N to QN |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | QN Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | N Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 8.5 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
