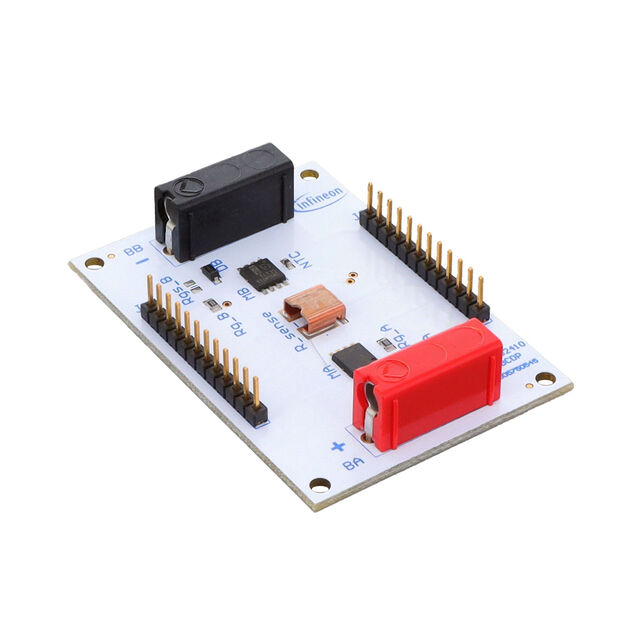

EB2ED24103D1BCDPTOBO1
This daughterboard belongs to a family of evaluation boards that can be combined with the 2ED2410-EM 24 V evaluation motherboard (EB 2ED2410 3M). These daughterboards are used to address different MOSFET and shunt arrangements typically found in modern automotive power distributions for 12 and 24 V board nets. This daughterboard EB 2ED2410 3D 1BCDP is addressing one load channel and consisting of two 60 V OptiMOSTM5 power MOSFET (1.1 mOhm) in a back2back common drain configuration. In addition, the load could be pre-charged with a dedicated pre-charge path. Following other daughterboards are available:
Technical Specifications
Parameters and characteristics for this part
| Specification | EB2ED24103D1BCDPTOBO1 |
|---|---|
| Contents | Board |
| Function | MOSFET |
| Type | Power Management |
| Utilized IC / Part | 2ED2410-EM |
