213500-3
ActiveTE Connectivity AMP Connectors

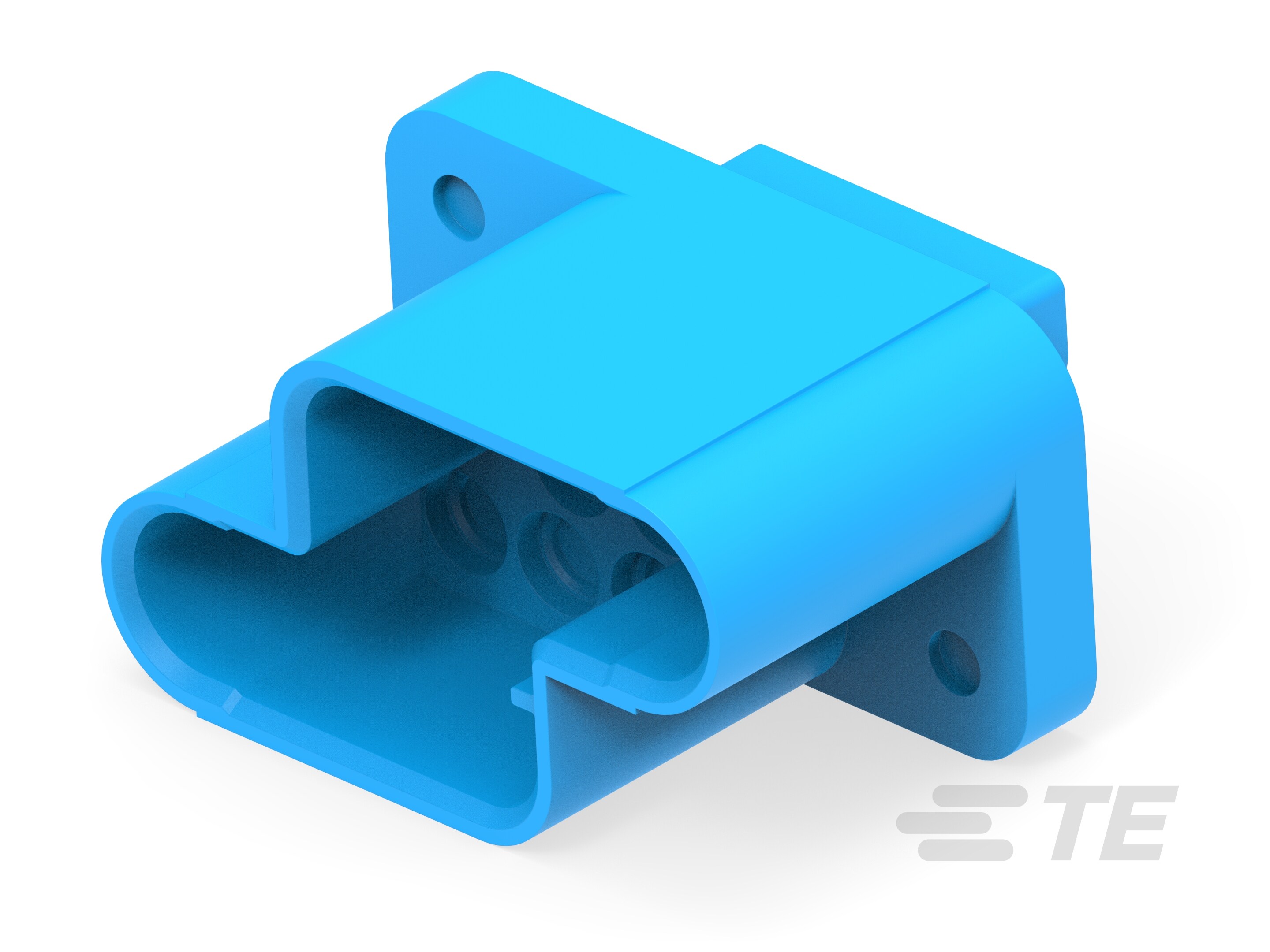

CONNECTOR HOUSING, METRIMATE .125 POWERBAND SERIES, RECEPTACLE, 8 POSITIONS, 8 MM
213500-3
ActiveTE Connectivity AMP Connectors
CONNECTOR HOUSING, METRIMATE .125 POWERBAND SERIES, RECEPTACLE, 8 POSITIONS, 8 MM
Description
General part information
213500-3
8 Position, Receptacle, Housing, Wire-to-Panel / Wire-to-Wire, UL 94V-0, 8 mm [.315 in] Centerline, 3 Row, 600 VAC, Power, Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 213500-3 |
|---|---|
| Color | Blue |
| Connector Style | Drawer |
| Connector Type | Housing for Male Pins |
| Connector Usage | Receptacle |
| Features | Mating Guide |
| Mounting Type | Panel Mount |
| Number of Positions | 8 |
| Number of Rows | 3 |
| Pitch | 0.315 in |
| Position Types | Coax, Power |
