1-796642-0

Active

TE Connectivity AMP Connectors

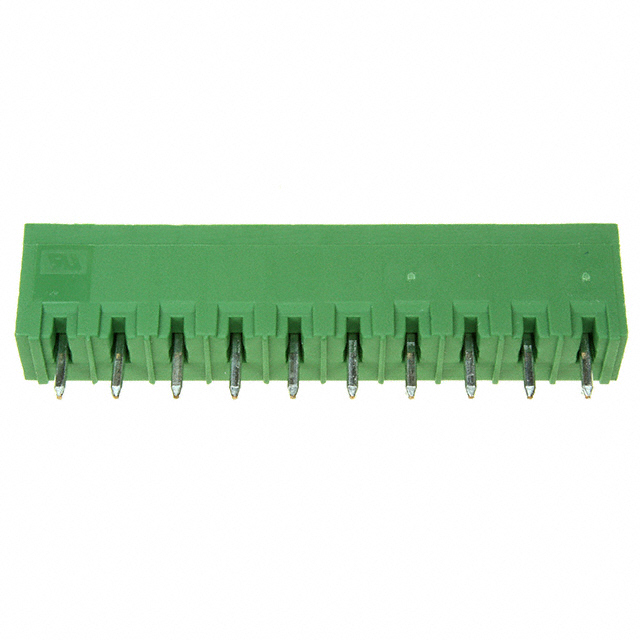

TERM BLOCK HDR 10POS VERT 5MM

Deep-Dive with AI

Search across all available documentation for this part.

1-796642-0

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 10POS VERT 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	800	$ 3.17

Description

General part information

796642 Series

10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole

Documents

Technical documentation and resources

No documents available

Specification	1-796642-0	796642 Series

Color	Green	Green
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Header Orientation	Vertical	Vertical
Insulation Height	0.472 in	0.472 in
Insulation Height	12 mm	12 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	10	4 - 24
Number of Positions	-	16
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	10	3 - 23
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

Part

Color

Number of Levels

Contact Mating Finish

Voltage - UL

Mounting Type

Contact Tail Length

Header Orientation

Insulation Height

Contact Material

Material Flammability Rating

Pitch [x]

Number of Positions

Termination Style

Operating Temperature [Min]

Operating Temperature [Max]

Type

Positions Per Level

Number of Positions

TE Connectivity AMP Connectors

796642-6

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

1-796642-2

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

796642-3

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

1-796642-7

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

2-796642-4

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

796642-4

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

2-796642-2

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

22 positions

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

796642-7

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

1-796642-6

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

TE Connectivity AMP Connectors

796642-8

Green

Tin

300 V

Through Hole

3.5 mm

0.138 in

Vertical

0.472 in

12 mm

Copper Alloy

UL94 V-0

5 mm

0.197 in

Solder

-40 °C

110 °C

Header, Male Pins, Shrouded (4 Side)

Part	Color	Number of Levels	Contact Mating Finish	Voltage - UL	Mounting Type	Contact Tail Length	Contact Tail Length	Header Orientation	Insulation Height	Insulation Height	Contact Material	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Positions	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Type	Positions Per Level	Number of Positions
TE Connectivity AMP Connectors 796642-6	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in	6	Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	6
TE Connectivity AMP Connectors 1-796642-2	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in	12	Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	12
TE Connectivity AMP Connectors 796642-3	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in		Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	3
TE Connectivity AMP Connectors 1-796642-7	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in		Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	17
TE Connectivity AMP Connectors 2-796642-4	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in	24	Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)
TE Connectivity AMP Connectors 796642-4	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in	4	Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	4
TE Connectivity AMP Connectors 2-796642-2	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in	22 positions	Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	22
TE Connectivity AMP Connectors 796642-7	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in	7	Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	7
TE Connectivity AMP Connectors 1-796642-6	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in		Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	16	16
TE Connectivity AMP Connectors 796642-8	Green	1	Tin	300 V	Through Hole	3.5 mm	0.138 in	Vertical	0.472 in	12 mm	Copper Alloy	UL94 V-0	5 mm	0.197 in	8	Solder	-40 °C	110 °C	Header, Male Pins, Shrouded (4 Side)	8
