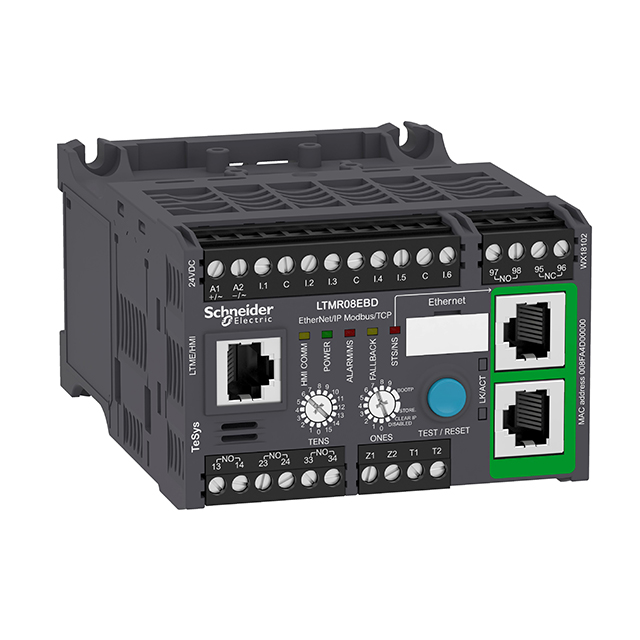

LTMR08EBD
ActiveSCHNEIDER ELECTRIC
MTR MANAGEMENT CTRLLER - ENET - DC ROHS COMPLIANT: YES
LTMR08EBD
ActiveSCHNEIDER ELECTRIC
MTR MANAGEMENT CTRLLER - ENET - DC ROHS COMPLIANT: YES
Description
General part information
LTMR08EBD
Motor Starter 20.4 ~ 26.24VDC Supply 8A 24V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | LTMR08EBD |
|---|---|
| Control / Drive Type | Motor Starter |
| Current - Output | 8 A |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Module |
| Voltage - Load | 24 VAC |
| Voltage - Supply (Maximum) | 26.24 VDC |
| Voltage - Supply (Minimum) | 20.4 V |
