VY1392M61Y5UQ6UV0
ActiveVishay Dale
VY1 X760Y500VAC 3,9NF ±20% Y5U AMMO E3 ROHS COMPLIANT: YES
VY1392M61Y5UQ6UV0
ActiveVishay Dale
VY1 X760Y500VAC 3,9NF ±20% Y5U AMMO E3 ROHS COMPLIANT: YES
Description
General part information
VY1392M61Y5UQ6UV0

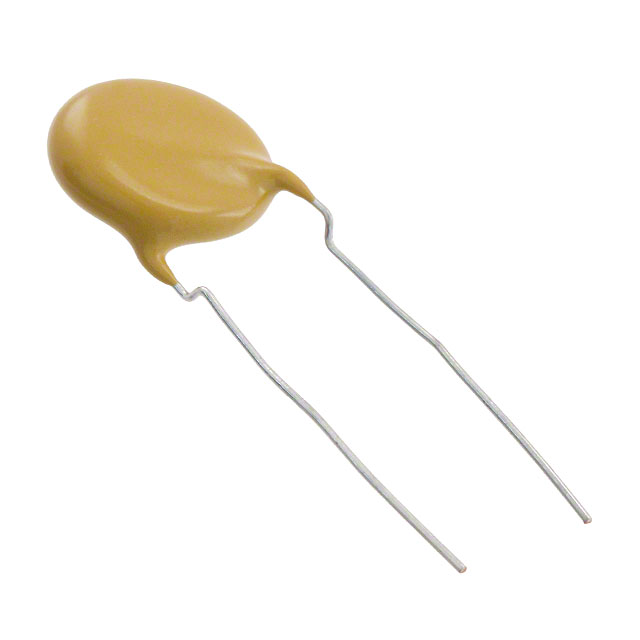

3900 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | VY1392M61Y5UQ6UV0 |
|---|---|
| Applications | Safety |
| Capacitance | 3900 pF |
| Height - Seated (Max) | 0.768 in |
| Lead Spacing | 0.394 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Ratings | X1, Y1 |
| Size / Dimension Diameter | 0.61 in |
| Temperature Coefficient | Y5U (E) |
| Tolerance | 20 % |
| Voltage - Rated | 760 V |
