Description
General part information

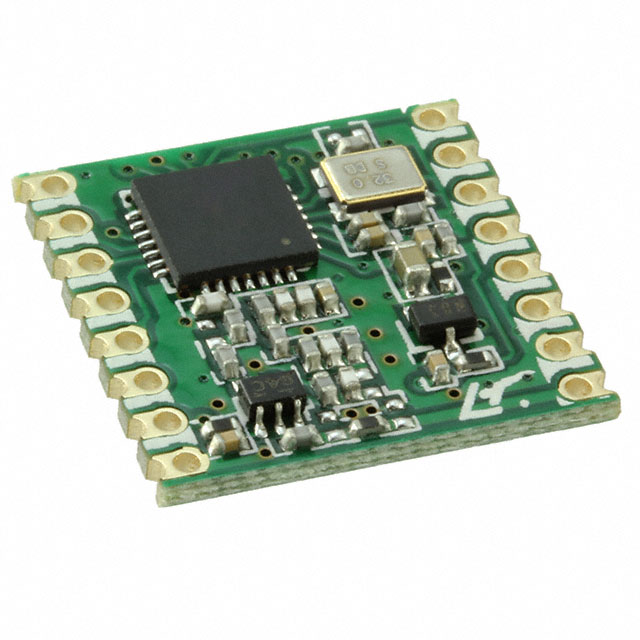

COM-13910
General ISM < 1GHz Transceiver Module 433MHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-13910 |
|---|---|
| Current - Receiving | 16 mA |
| Current - Transmitting | 130 mA |
| Data Rate | 300 kbps |
| Frequency | 433 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 20 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -120 dBm |
| Serial Interfaces | SPI |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
