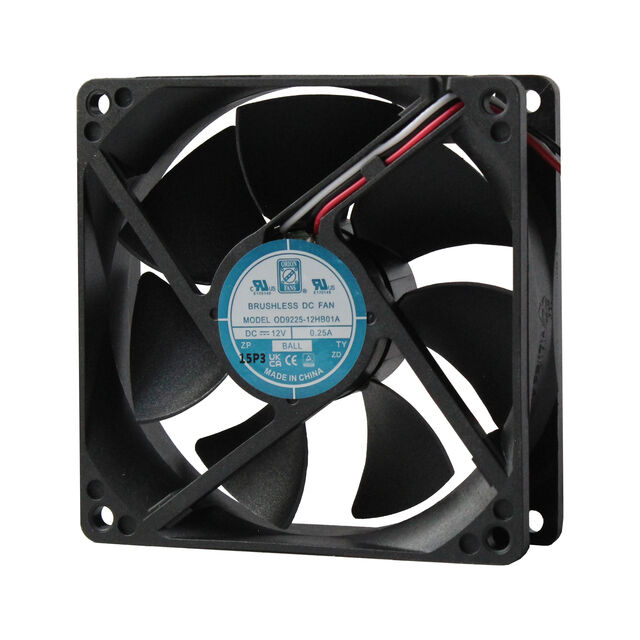

Specification	OD9225-SPOT/DIN

Air Flow	65 CFM
Bearing Type	Ball
Current Rating	0.29 A
Fan Type	Tubeaxial
Features	Auto Restart, Thermal Overload Protector (TOP)
Material - Blade	PBT, Polybutylene Terephthalate
Material - Frame	Polybutylene Terephthalate (PBT)
Noise (Max)	35 dB
Noise (Min)	23 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	19 W
RPM	1500 RPM
Size / Dimension Height	92.5 mm
Size / Dimension Length	92.5 mm
Size / Dimension Shape	Square
Static Pressure	0.18 in H2O
Termination	Cord and Plug
Voltage - Rated	120 VDC
Width	25 mm

OD9225 Series

...

Part	Material - Blade	Material - Frame	Fan Type	Termination Leads Count	Termination Type	Termination	Width	Ingress Protection Description	Ingress Protection IP Rating	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Features	Voltage - Rated	Bearing Type	Approval Agency	Air Flow	Operating Temperature (Max)	Operating Temperature (Min)	RPM	Noise	Static Pressure	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Lifetime	Power (Watts)
ORION FANS OD9225-24LBIP5502A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	3	Wire Leads	3 Wire Leads	25 mm	Dust Protected Water Resistant	IP55	92.5 mm	Square	92.5 mm	Alarm Sensor	24 VAC	Ball	cURus TUV
ORION FANS OD9225-12HBIP5502A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	3	Wire Leads	3 Wire Leads	25 mm	Dust Protected Water Resistant	IP55	92.5 mm	Square	92.5 mm	Alarm Sensor	12 VAC	Ball	cURus TUV
ORION FANS OD9225-24HS01A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	3	Wire Leads	3 Wire Leads	25 mm			92.5 mm	Square	92.5 mm	Speed Sensor (Tach)	24 VAC	Sleeve	cURus TUV
ORION FANS OD9225-12LB	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	25 mm			92.5 mm	Square	92.5 mm		12 VAC	Ball	cURus TUV	39 CFM	176 °F	-4 °F	2100 RPM	28 dB	0.07 in H2O	0.13 A	7 V	17 VDC	60000 Hrs
ORION FANS OD9225-12LS02A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	3	Wire Leads	3 Wire Leads	25 mm			92.5 mm	Square	92.5 mm	Locked Rotor Sensor	12 VAC	Sleeve	cURus TUV
ORION FANS OD9225-24MB	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	25 mm			92.5 mm	Square	92.5 mm		24 VAC	Ball	cURus TUV	44 CFM	176 °F	-4 °F	2400 RPM	31 dB	0.09 in H2O	0.09 A	12 V	28 V	60000 Hrs
ORION FANS OD9225-24MS01A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	3	Wire Leads	3 Wire Leads	25 mm			92.5 mm	Square	92.5 mm	Speed Sensor (Tach)	24 VAC	Sleeve	cURus TUV
ORION FANS OD9225-48HB	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	25 mm			92.5 mm	Square	92.5 mm		48 VDC	Ball	cURus TUV	50 CFM	176 °F	-4 °F	2800 RPM	33 dB	0.24 in H2O	0.09 A	32 VDC	56 VDC	60000 Hrs
ORION FANS OD9225-12HHB	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	25 mm			92 mm	Square	92 mm		12 VAC	Ball	cURus TUV	65.7 CFM	149 °F	-4 °F	3575 RPM	43 dB	0.27 in H2O	0.29 A	8 V	13.8 VDC	70000 Hrs	3 W
ORION FANS OD9225-12LLB5	Fiberglass Reinforced PBT Polybutylene Terephthalate	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Tubeaxial	3	Wire Leads	3 Wire Leads	25 mm			92.5 mm	Square	92.5 mm	PWM Control	12 VAC	Ball	cURus TUV
