LCCA30145-FT2
ActivePasternack

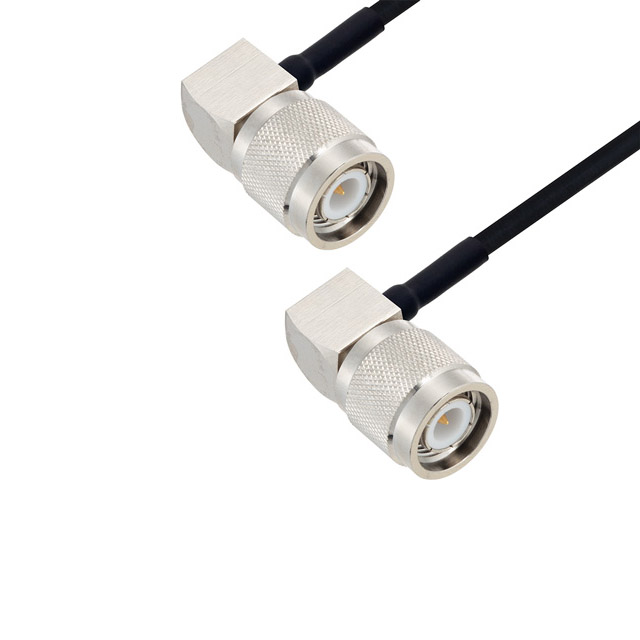

TNC MALE RIGHT ANGLE TO TNC MALE
LCCA30145-FT2
ActivePasternack
TNC MALE RIGHT ANGLE TO TNC MALE
Description
General part information
LCCA30145-FT2
Cable Assembly Coaxial TNC to TNC LC085TBJ 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30145-FT2 |
|---|---|
| 1st Connector | Right Angle, TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 24 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC |
