CA3KN40BD
ActiveCONTACTOR, 10 A, DIN RAIL, PANEL, 690 V, 4PST-NO, 4 POLE
CA3KN40BD
ActiveCONTACTOR, 10 A, DIN RAIL, PANEL, 690 V, 4PST-NO, 4 POLE
Description
General part information

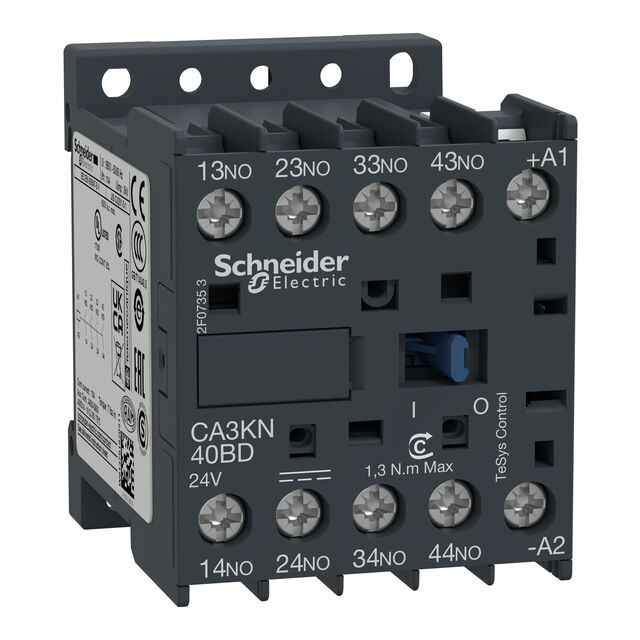

CA3KN40BD
The CA3KN40BD is a 4-pole TeSys K Contactor with DC coil. 4NO power pole contact composition. Standard coil, TeSys K forms a complete range of reversing or non-reversing contactors, offering the best performance/compactness ratio and seamless integration in all applications. Zones sensitive to noise, disturbed mains supplies silent contactor, use compatible with programmable controller outputs low-consumption contactor.
Technical Specifications
Parameters and characteristics for this part
| Specification | CA3KN40BD |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 10 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 19.2 V |
| Must Release Voltage | 2.4 V |
| Operate Time | 10 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 4 |
| Release Time | 40 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
