Description
General part information

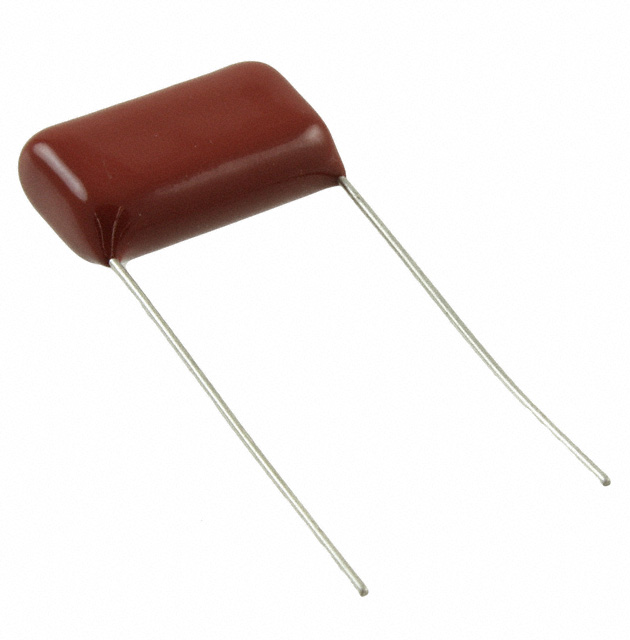

QXP2E334KRPT
0.33 µF Film Capacitor 125V 250V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | QXP2E334KRPT |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 0.33 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.555 in |
| Lead Spacing | 0.689 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.827 in |
| Size / Dimension Width | 0.335 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 250 VDC |
