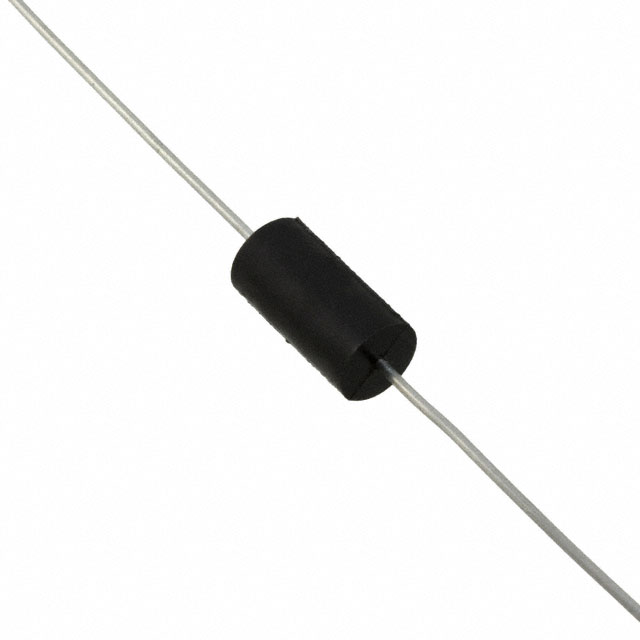

101-100RB
ActiveBourns Inc.
RES 100 OHM 0.1% 1/4W AXIAL
101-100RB
ActiveBourns Inc.
RES 100 OHM 0.1% 1/4W AXIAL
Description
General part information
101-100RB
100 Ohms ±0.1% 0.25W, 1/4W Through Hole Resistor Axial Flame Proof, Moisture Resistant, Non-Inductive, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | 101-100RB |
|---|---|
| Composition | Wirewound |
| Features | Non-Inductive, Moisture Resistant, Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 145 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 100 Ohms |
| Size / Dimension Diameter | 0.252 in |
| Size / Dimension Length | 0.5 in |
| Temperature Coefficient | 20 ppm/¯C |
| Tolerance | 0.1 % |
