450D103PR16
ActiveCTS Electrocomponents
POT 10K OHM 1/2W CARBON LINEAR
450D103PR16
ActiveCTS Electrocomponents
POT 10K OHM 1/2W CARBON LINEAR
Description
General part information
450D103PR16

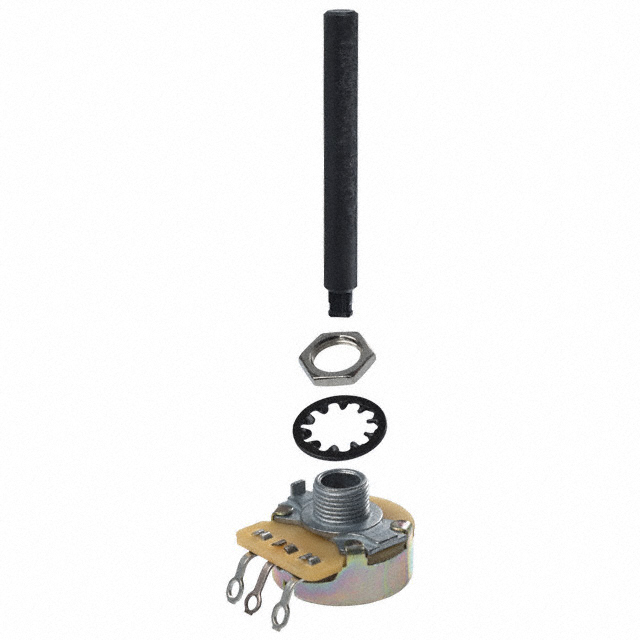

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.5W, 1/2W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 450D103PR16 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 50.8 mm |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 10 kOhm |
| Resistive Material | Carbon |
| Rotation | 300 ° |
| Size - Body Diameter | 0.938 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
