Description
General part information
PRT-12002

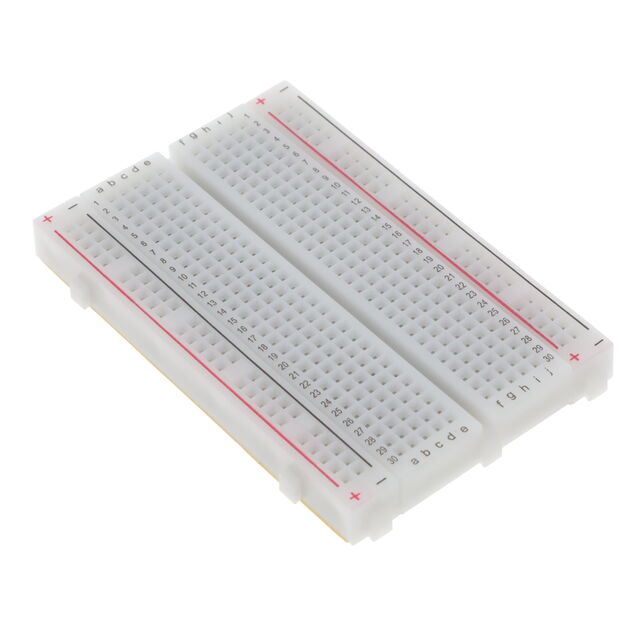

Solderless Breadboard Terminal Strip (No Frame) 3.29" x 2.15" (83.6mm x 54.6mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-12002 |
|---|---|
| Number of 5-Tie Point Terminals | 60 |
| Number of Distribution Buses | 2 |
| Number of Terminal Strips | 1 |
| Number of Tie Points (Total) | 400 |
| Size / Dimension Length | 3.29 in |
| Size / Dimension Width | 2.15 in |
| Type | Terminal Strip (No Frame) |
| Wire Gauge (AWG) (Max) | 29 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
