2477167-1
ActiveTE Connectivity AMP Connectors

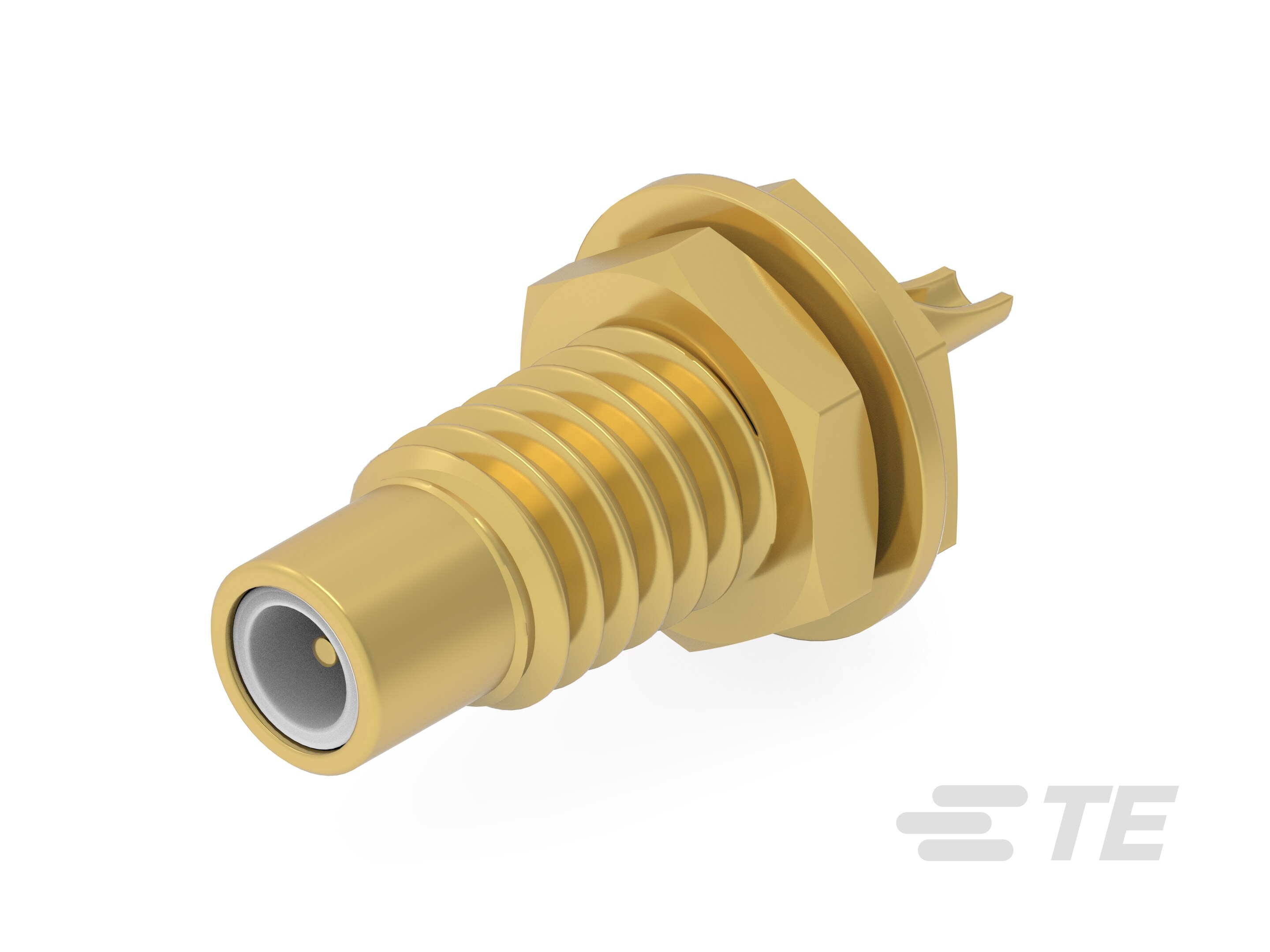

SMC JACK STR FRONT BHD SOLDER CUP 10 GHZ
2477167-1
ActiveTE Connectivity AMP Connectors
SMC JACK STR FRONT BHD SOLDER CUP 10 GHZ
Description
General part information
2477167-1
SMC Connector, Jack, 50 ohm, Threaded, 0 – 10 GHz, Cable-to-Board, 1 Position, Wire & Cable, Panel Mount, -65 – 165 °C [-85 – 329 °F], Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 2477167-1 |
|---|---|
| Center Contact Material | Brass |
| Connector Style | SMC |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder Cup |
| Fastening Type | Snap-On |
| Frequency - Max | 10 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Number of Ports | 1 |
| Shield Termination | Solder |
