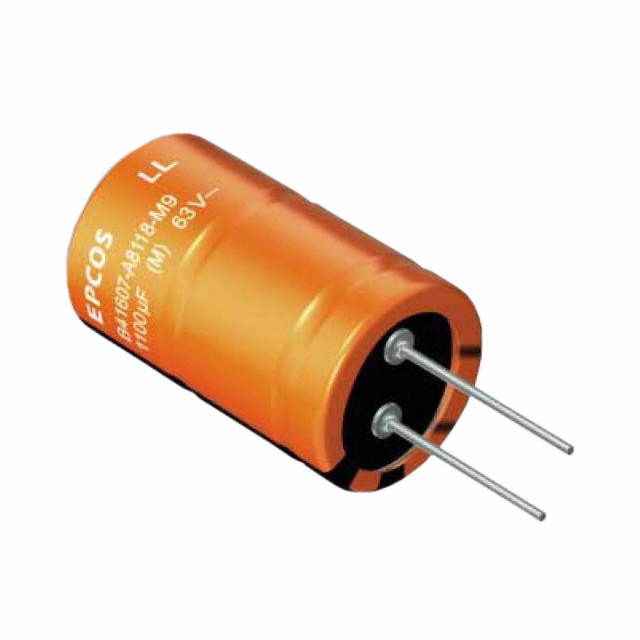

Specification	B41605A478M9

Applications	Automotive
Capacitance	4700 µF
ESR (Equivalent Series Resistance)	18 mOhm
Height - Seated (Max)	2.047 in
Lead Spacing	0.331 in
Lifetime	5000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	9 A
Size / Dimension Diameter	0.984 in
Tolerance	20 %
Voltage - Rated	55 V
