Description
General part information

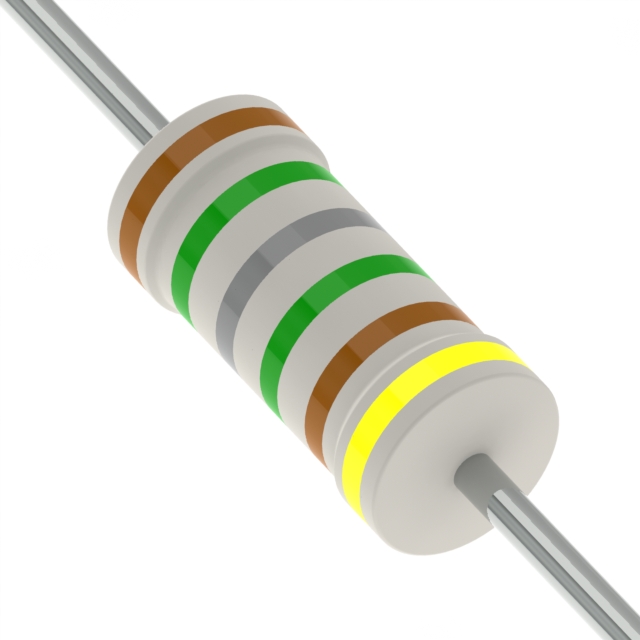

HHV-25FT-52-15M8
15.8 MOhms ±1% 0.25W, 1/4W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HHV-25FT-52-15M8 |
|---|---|
| Composition | Metal Film |
| Features | Safety, Flame Retardant Coating, High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 15.8 MOhms |
| Size / Dimension Diameter | 0.094 in |
| Size / Dimension Length | 0.248 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
