Description
General part information
LCCA30150-FT10

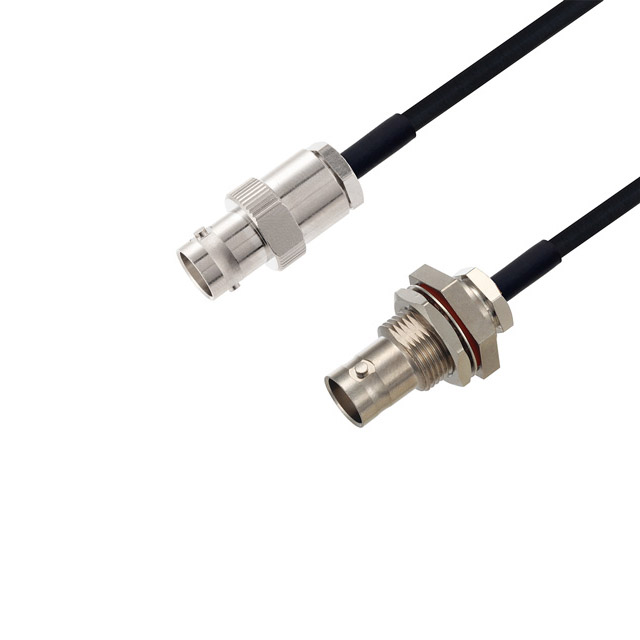

Cable Assembly Coaxial BNC to BNC LC085TBJ 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30150-FT10 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 61 GHz |
| Length | 120 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC |
