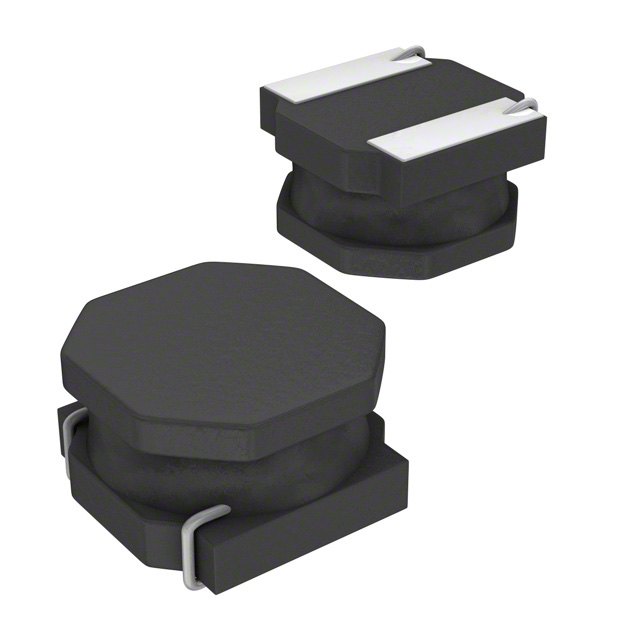

MCOIL, MD 2x2

MDMK2020T2R2MMV

Active
Taiyo Yuden

INDUCTOR,SMD HIGH CURRENT,METAL CORE,0,2.2UH,20% ROHS COMPLIANT: YES

Find alt
MCOIL, MD 2x2

MDMK2020T2R2MMV

Active
Taiyo Yuden

INDUCTOR,SMD HIGH CURRENT,METAL CORE,0,2.2UH,20% ROHS COMPLIANT: YES

Find alt

Description

General part information

MDMK2020T2R2MMV

2.2 µH Shielded Drum Core, Wirewound Inductor 109mOhm Max Nonstandard

Technical Specifications

Parameters and characteristics for this part

SpecificationMDMK2020T2R2MMV
DC Resistance (DCR) (Max)109 mOhm
Height - Seated (Max)0.047 in
Inductance2.2 µH
Inductance Frequency - Test1 MHz
Material - CoreMetal
Mounting TypeSurface Mount
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Package / CaseNonstandard
RatingsAEC-Q200
ShieldingShielded
Size / Dimension Length0.079 in
Size / Dimension Width0.079 in
Tolerance20 %
TypeDrum Core, Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MDMK2020T2R2MMV | Datasheet
