HEAVY DUTY CONNECTOR, HAN-COMPACT® 8/0+PE POWER-SIGNAL, UL508, HAN Q SERIES, INSERT, 9 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
09120083101
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, HAN-COMPACT® 8/0+PE POWER-SIGNAL, UL508, HAN Q SERIES, INSERT, 9 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09120083101 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han® |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 8+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.19 | |
| 10 | $ 19.93 | |||
| 25 | $ 17.85 | |||
| 50 | $ 16.50 | |||
| 100 | $ 15.32 | |||
| 250 | $ 13.98 | |||
| 500 | $ 13.11 | |||
Description
General part information
09120083101

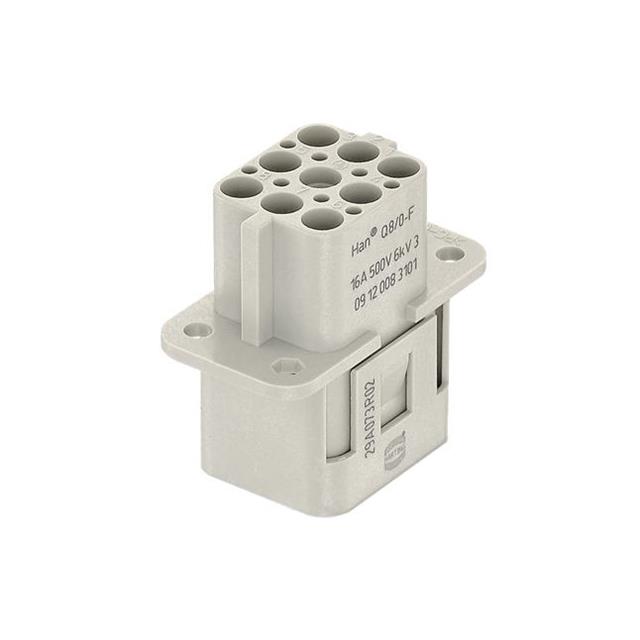

The Han Q series Han-Quick Lock® heavy duty Connector Male Insert with crimp termination.
