HVR3700005234FR500
ActiveVishay Dale

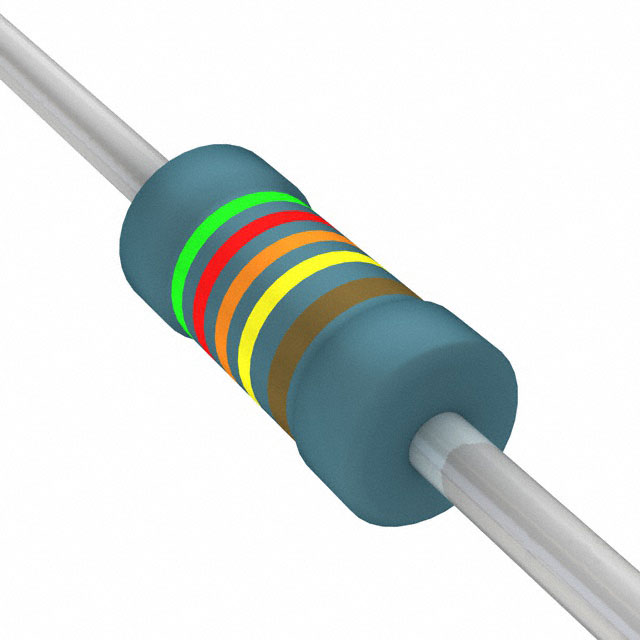

RES 5.23M OHM 1/2W 1% AXIAL
HVR3700005234FR500
ActiveVishay Dale
RES 5.23M OHM 1/2W 1% AXIAL
Description
General part information
HVR3700005234FR500
5.23 MOhms ±1% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVR3700005234FR500 |
|---|---|
| Composition | Metal Film |
| Features | High Voltage, Pulse Withstanding, Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 5.23 MOhms |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.394 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
