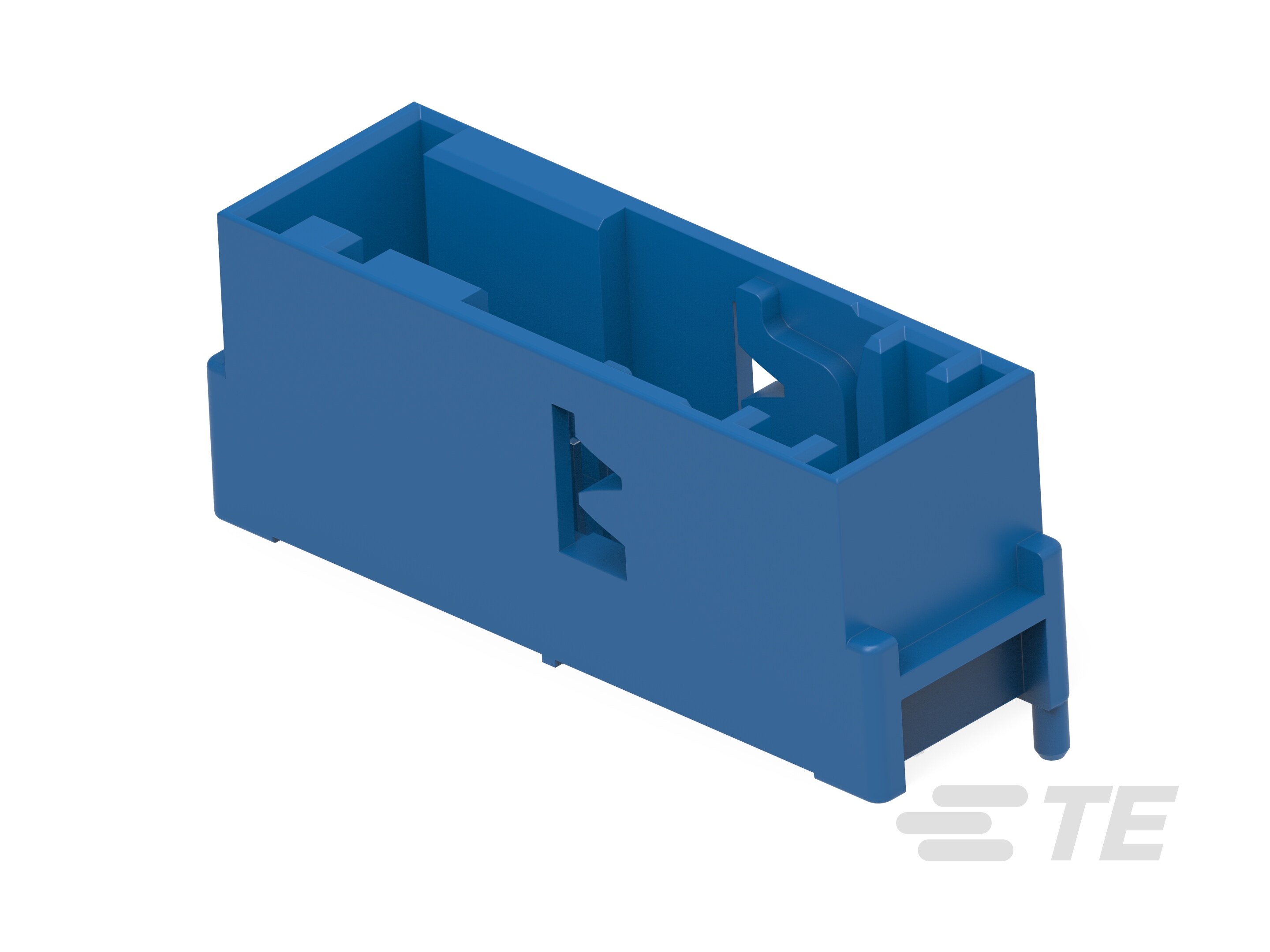

Specification	8-1418773-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.256 in
Contact Length - Post	0.11 in
Contact Material	Copper Tin
Contact Shape	Square
Contact Type	Tab
Current Rating	7.5 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Blue
Insulation Height	0.795 in
Insulation Material	Polyphthalamide (PPA), Glass Filled
Mounting Type	Through Hole
Number of Positions	32
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	12 V
