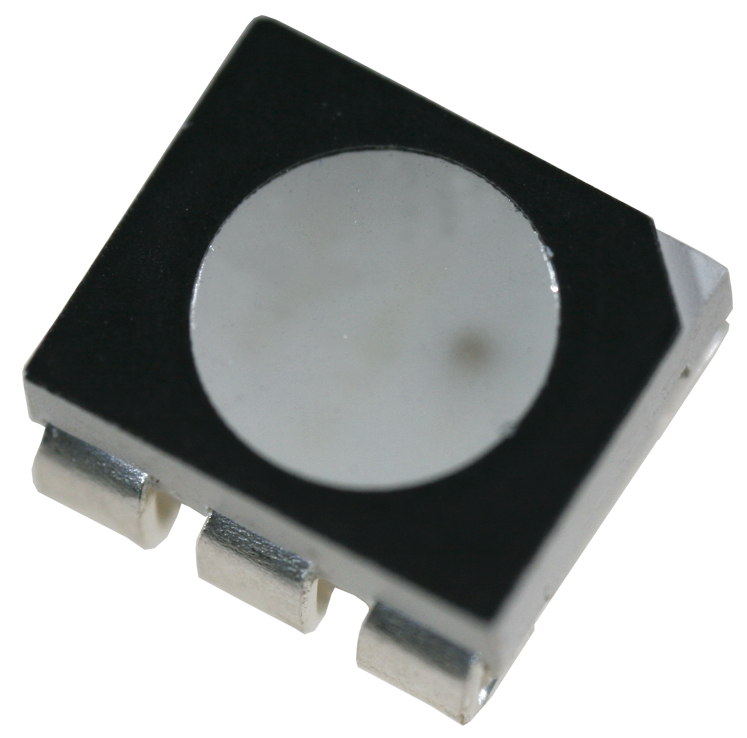

OVSTRGBB1CR8

OVSTRGBB1CR8

Active
TT Electronics/BI

PACKAGE TYPE - PLCC6 VISIBLE LEDS

Find alt
OVSTRGBB1CR8

OVSTRGBB1CR8

Active
TT Electronics/BI

PACKAGE TYPE - PLCC6 VISIBLE LEDS

Find alt

Description

General part information

OVSTRGBB1CR8

PACKAGE TYPE - PLCC6 VISIBLE LEDS

Technical Specifications

Parameters and characteristics for this part

SpecificationOVSTRGBB1CR8
ColorBlue (RGB), Green, Red
ConfigurationIndependent
Current - Test (Blue)50 mA
Current - Test (Green)50 mA
Current - Test (Red)50 mA
Current - Test ColorsRed, Blue, Green
Height (Max)2.6 mm
Lens Diameter4 mm
Lens StyleRound, Flat Top
Lens TransparencyDiffused
Millicandela Rating (Blue)400 mcd
Millicandela Rating (Green)1600 mcd
Millicandela Rating (Red)700 mcd
Millicandela Rating ColorsGreen, Blue, Red
Mounting TypeSurface Mount
Package / Case6-SMD, J-Lead
Package Name6-PLCC
Size / Dimension Length6 mm
Size / Dimension Width5 mm
Viewing Angle120 °
Voltage - Forward (Vf) (Typ) (Blue)3.2 V
Voltage - Forward (Vf) (Typ) (Green)3.2 V
Voltage - Forward (Vf) (Typ) (Red)2 V
Voltage - Forward (Vf) (Typ) ColorRed, Green, Blue
Wavelength - Dominant (Blue)470 nm
Wavelength - Dominant (Green)530 nm
Wavelength - Dominant (Red)622 nm
Wavelength - Dominant ColorRed, Green, Blue
Wavelength - Peak (Blue)470 nm
Wavelength - Peak (Green)527 nm
Wavelength - Peak (Red)630 nm
Wavelength - Peak ColorsGreen, Red, Blue
