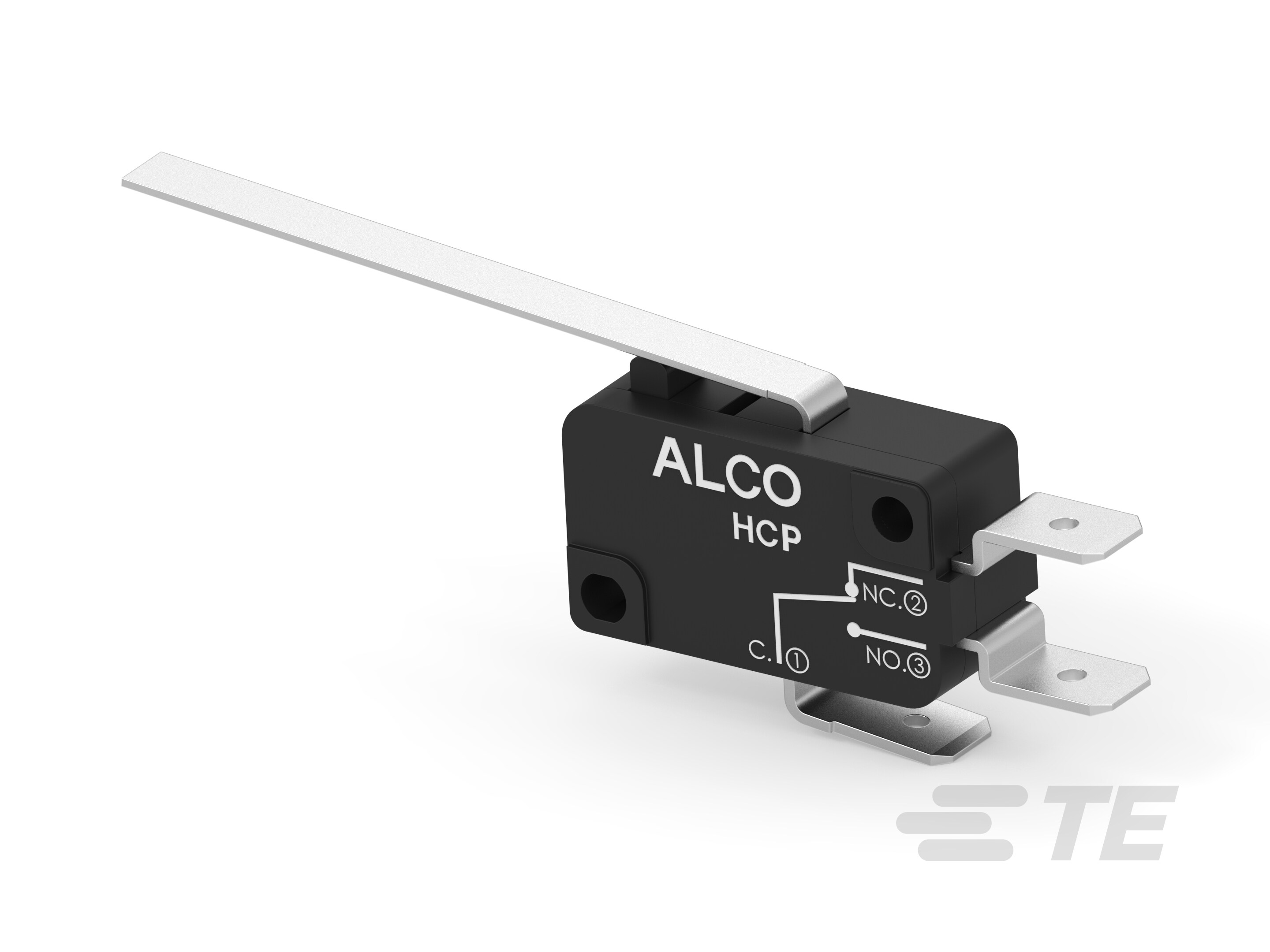

Specification	HCP10DTE3L04

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating	10 A
Differential Travel (Linear)	0.083 in
Electrical Life (Cycles)	10000 Cycles
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	50 gf
Operating Position (Length)	0.602 in
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pretravel (Length)	0.366 in
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Mom
Termination Style	Quick Connect
Voltage Rating - AC	125 V

ALCOSWITCH HCP Series

...

Part	Current Rating	Quick Connect Size (0.250")	Termination Style	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Mechanical Life (Cycles)	Differential Travel (Linear)	Operating Force	Switch Function	Pretravel (Length)	Voltage Rating - AC	Mounting Type	Electrical Life (Cycles)	Operating Position (Length)	Overtravel (Linear)	Actuator Type	Quick Connect Size (0.187")	Release Force
TE Connectivity AMP Connectors HCP10DTE4L04	10 A	0.25 in	Quick Connect	SPDT	125 °C	-40 °C	10000000 Cycles	0.045 in	90 gf	On-Mom	0.218 in	125 V	Chassis Mount	10000 Cycles	0.736 in	0.075 in	Lever Simulated Roller
TE Connectivity AMP Connectors HCP20DTD0H04	20 A		Quick Connect	SPDT	125 °C	-40 °C	10000000 Cycles	0.016 in	300 gf	On-Mom	0.075 in	125 V	Chassis Mount	10000 Cycles	0.579 in	0.039 in	Round (Pin Plunger)	0.187 in
TE Connectivity AMP Connectors HCP16DTE1L04	16 A	0.25 in	Quick Connect	SPDT	125 °C	-40 °C	10000000 Cycles	0.02 in	150 gf	On-Mom	0.11 in	125 V	Chassis Mount	10000 Cycles	0.602 in	0.039 in	Lever Straight
TE Connectivity AMP Connectors HCP16DTD1S04	16 A		Quick Connect	SPDT	125 °C	-40 °C	10000000 Cycles	0.02 in	190 gf	On-Mom	0.11 in	125 V	Chassis Mount	10000 Cycles	0.602 in	0.039 in	Lever Straight	0.187 in
TE Connectivity AMP Connectors HCP16DTE4S04	16 A	0.25 in	Quick Connect	SPDT	125 °C	-40 °C	10000000 Cycles	0.045 in	120 gf	On-Mom	0.218 in	125 V	Chassis Mount	10000 Cycles	0.736 in	0.075 in	Lever Simulated Roller
TE Connectivity AMP Connectors HCP26DTD5Q04	26 A		Quick Connect	SPDT	125 °C	-40 °C	10000000 Cycles	0.018 in	375 gf	On-Mom	0.106 in	125 V	Chassis Mount	10000 Cycles	0.815 in	0.045 in	Lever Roller	0.187 in
TE Connectivity AMP Connectors HCP16DTD4L04	16 A		Quick Connect	SPDT	125 °C	-40 °C	10000000 Cycles	0.045 in	90 gf	On-Mom	0.218 in	125 V	Chassis Mount	10000 Cycles	0.736 in	0.075 in	Lever Simulated Roller	0.187 in
TE Connectivity AMP Connectors HCP16DTD3L04	16 A		Quick Connect	SPDT					50 gf		0.366 in	125 V			0.602 in		Round (Pin Plunger)		5 gf
TE Connectivity AMP Connectors HCP10DTE0L04	10 A		Quick Connect	SPDT	125 °C	-40 °C			150 gf		0.075 in	125 V			0.579 in	0.039 in	Round (Pin Plunger)		25 gf
TE Connectivity AMP Connectors HCP10DTE4S04	10 A	0.25 in	Quick Connect	SPDT	125 °C	-40 °C	10000000 Cycles	0.045 in	120 gf	On-Mom	0.218 in	125 V	Chassis Mount	10000 Cycles	0.736 in	0.075 in	Lever Simulated Roller
