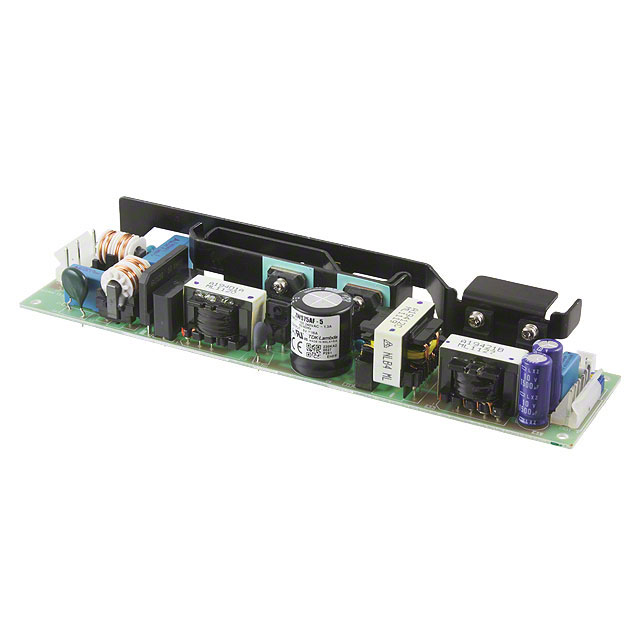

ZWS75AF-5
ObsoleteTDK Corporation
AC/DC CONVERTER 5V 75W
ZWS75AF-5
ObsoleteTDK Corporation
AC/DC CONVERTER 5V 75W
Description
General part information
ZWS75AF-5
Open Frame AC DC Converters 1 Output 5V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ZWS75AF-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 15 A |
| Efficiency | 75 % |
| Features | PFC, Adjustable Output, Load Sharing, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 75 W |
| Size / Dimension Height | 1.26 in |
| Size / Dimension Length | 8.74 in |
| Size / Dimension Width | 2.17 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
