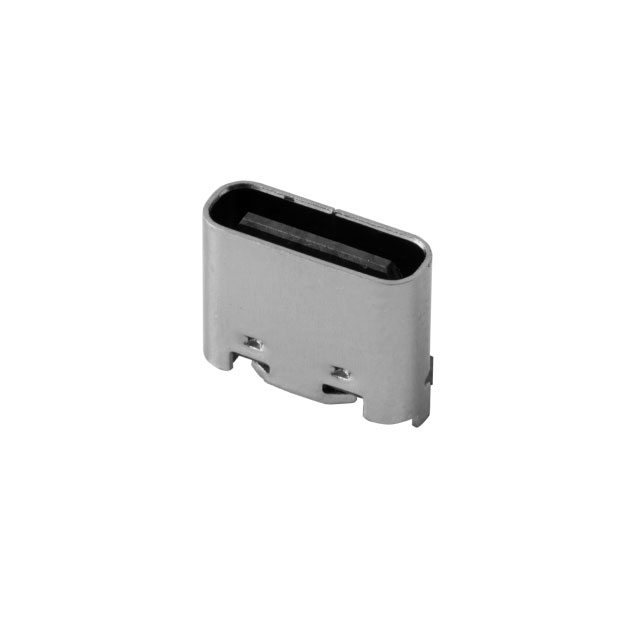

UJC-VP-G-SMT-TR
ActiveSame Sky (Formerly CUI Devices)
TYPE C, 20 VDC, 3 A, VERTICAL, G
UJC-VP-G-SMT-TR
ActiveSame Sky (Formerly CUI Devices)
TYPE C, 20 VDC, 3 A, VERTICAL, G
Description
General part information
UJC-VP-G-SMT-TR
USB-C (USB TYPE-C) Receptacle Connector 24 (6+18 Dummy) Position Surface Mount, Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | UJC-VP-G-SMT-TR |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating Options | 1.25A, 3A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 cycles |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 24 |
| Number of Contacts (Dummy) | 18 |
| Number of Contacts (Functional) | 6 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
