MBA02040C2372FRP00
ActiveVishay Dale

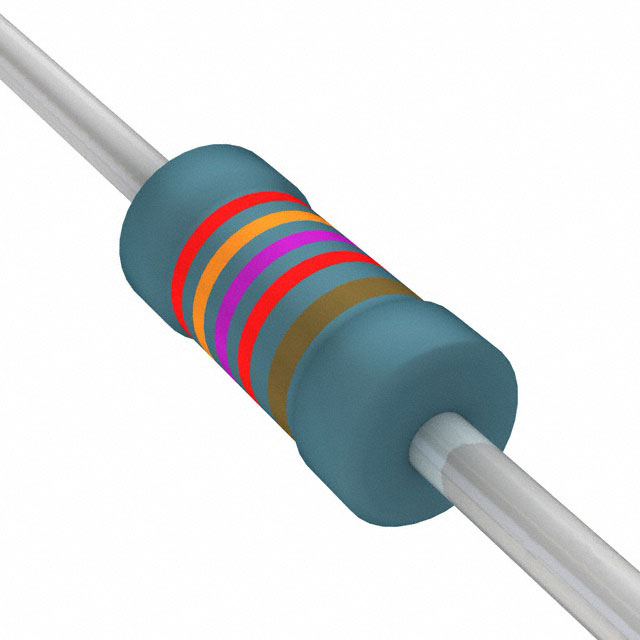

THROUGH HOLE RESISTOR, 23.7 KOHM, MBA SERIES, 400 MW, ± 1%, AXIAL LEADED, 200 V
MBA02040C2372FRP00
ActiveVishay Dale
THROUGH HOLE RESISTOR, 23.7 KOHM, MBA SERIES, 400 MW, ± 1%, AXIAL LEADED, 200 V
Description
General part information
MBA02040C2372FRP00
23.7 kOhms ±1% 0.4W Through Hole Resistor Axial Automotive AEC-Q200 Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBA02040C2372FRP00 |
|---|---|
| Composition | Metal Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.4 W |
| Resistance | 23.7 kOhm |
| Size / Dimension Diameter | 0.063 in |
| Size / Dimension Length | 0.142 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
