Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSV851ICT | TSV851 Series |
|---|---|---|
| - | - | |
| Amplifier Type | General Purpose | General Purpose |
| Current - Input Bias | 27 nA | 27 nA |
| Current - Output / Channel [custom] | 70 mA | 70 mA |
| Current - Supply | 130 µA | 130 µA |
| Gain Bandwidth Product | 1.3 MHz | 1.3 MHz |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Rail-to-Rail | Rail-to-Rail |

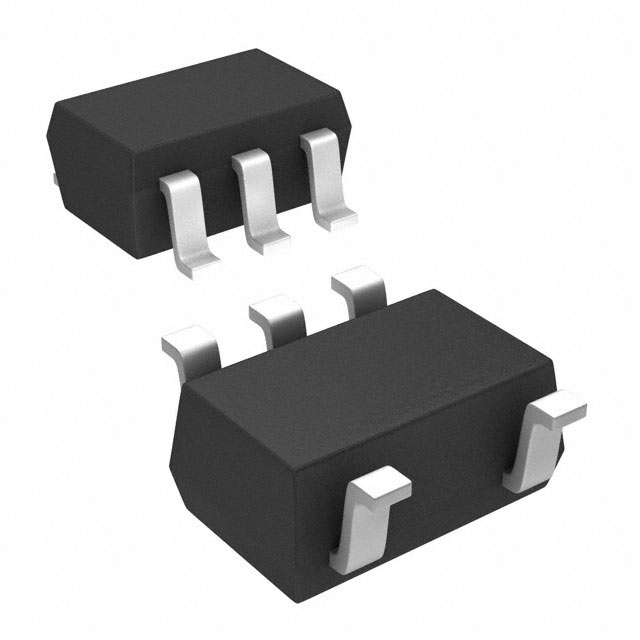

| Package / Case | SC-70-5, 5-TSSOP, SOT-353 | SC-74A, SOT-753, SC-70-5, 5-TSSOP, SOT-353 |
| Qualification | - | AEC-Q100 |
| Slew Rate | 0.7 V/µs | 0.7 V/µs |
| Supplier Device Package | SC-70-5 | SOT-23-5, SC-70-5 |
| Voltage - Input Offset | 4 mV | 4 - 800 mV |
| Voltage - Supply Span (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 2.5 V | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.21 | |
| 10 | $ 1.08 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.55 | |||
| Digi-Reel® | 1 | $ 1.21 | ||
| 10 | $ 1.08 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.55 | |||
| Tape & Reel (TR) | 3000 | $ 0.51 | ||
| 6000 | $ 0.49 | |||
| 15000 | $ 0.47 | |||
TSV851 Series
IC OPAMP GP 1 CIRCUIT SOT23-5
| Part | Mounting Type | Current - Output / Channel [custom] | Gain Bandwidth Product | Number of Circuits | Package / Case | Voltage - Supply Span (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Amplifier Type | Current - Input Bias | Current - Supply | Voltage - Supply Span (Min) [Min] | Voltage - Input Offset | Supplier Device Package | Slew Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSV851ILT | Surface Mount | 70 mA | 1.3 MHz | 1 | SC-74A, SOT-753 | 5.5 V | 125 °C | -40 °C | Rail-to-Rail | General Purpose | 27 nA | 130 µA | 2.5 V | 4 mV | SOT-23-5 | 0.7 V/µs | ||
STMicroelectronics TSV851AIYLT | Surface Mount | 70 mA | 1.3 MHz | 1 | SC-74A, SOT-753 | 5.5 V | 125 °C | -40 °C | Rail-to-Rail | General Purpose | 27 nA | 130 µA | 2.5 V | 800 µV | SOT-23-5 | 0.7 V/µs | Automotive | AEC-Q100 |
STMicroelectronics TSV851ICT | Surface Mount | 70 mA | 1.3 MHz | 1 | 5-TSSOP, SC-70-5, SOT-353 | 5.5 V | 125 °C | -40 °C | Rail-to-Rail | General Purpose | 27 nA | 130 µA | 2.5 V | 4 mV | SC-70-5 | 0.7 V/µs | ||
STMicroelectronics TSV851ICT |
Description
General part information
TSV851 Series
The TSV85x, TSV85xA series of single, dual, and quad operational amplifiers offer low voltage operation with a rail-to-rail output swing. The TSV85x, TSV85xA series outperforms the industry standard LMV321, proposing lower supply voltage capability, enhanced input offset voltage, and smaller packages.The devices are offered with either industry standard pinouts or with a power-saving shutdown feature that reduces the supply current to a maximum of 50 nA at 25 °C.The wide temperature range, high ESD tolerance, and automotive grade qualification ease the use in harsh automotive applications.Low power consumption: 180 µA max at 5 VLow power shutdown mode: 50 nA maxLow offset voltage: 0.8 mV max at 25 °CTiny packagesExtended temperature range: -40 °C to 125 °CLow supply voltage: 2.3 V - 5.5 VGain bandwidth product: 1.3 MHzAutomotive qualificationBenefitsLonger lifetime in battery-powered applicationsHigher accuracy without calibrationSmaller form factor than equivalent competitor devicesApplication performances guaranteed over wide temperature rangesRelated productsSee LMV82x series for higher gain bandwidth product (5.5 MHz)
