XS108B3PBM8
ActiveSCHNEIDER ELECTRIC

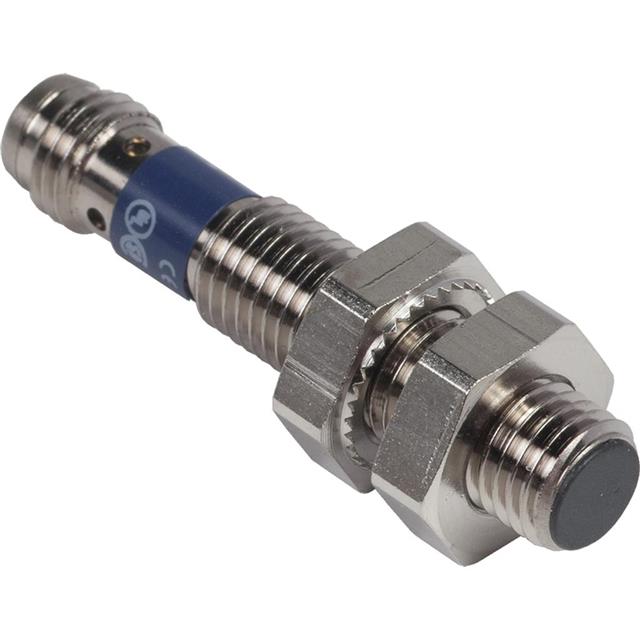

INDUCTIVE PROXIMITY SENSOR, OSISENSE XS SERIES, 2 MM, PNP, M8, 12 TO 24 V, M8 CONNECTOR
XS108B3PBM8
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS SERIES, 2 MM, PNP, M8, 12 TO 24 V, M8 CONNECTOR
Description
General part information
XS108B3PBM8
Inductive Proximity Sensor 0.098" (2.5mm) IP65, IP67 Cylinder, Threaded - M8
Technical Specifications
Parameters and characteristics for this part
| Specification | XS108B3PBM8 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, PNP-NC |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 0.098 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
