General part information

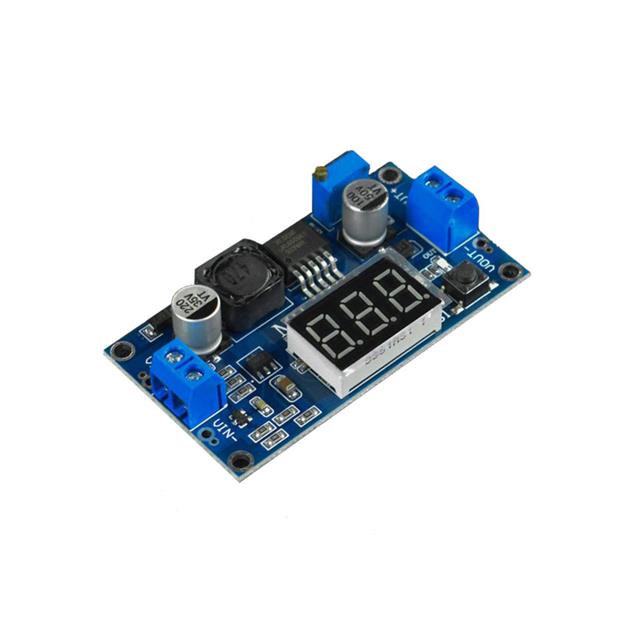

DFR0123
XL6009 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DFR0123 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Main Purpose | Step Up, DC/DC |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Power - Output | 15 W |
| Regulator Topology | Boost |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | XL6009 |
| Voltage - Input (Maximum) | 34 V |
| Voltage - Input (Minimum) | 3.7 V |
| Voltage - Output (Max) | 34 V |
| Voltage - Output (Min) | 3.7 V |
