Herm Blade& Recp Assy, 2 Pos,Latch-1-2058703-1

1-2058703-1

Active
TE Connectivity AMP Connectors

HERM BLADE& RECP ASSY, 2 POS,LATCH

Find alt
Herm Blade& Recp Assy, 2 Pos,Latch-1-2058703-1

1-2058703-1

Active
TE Connectivity AMP Connectors

HERM BLADE& RECP ASSY, 2 POS,LATCH

Find alt

Description

General part information

1-2058703-1

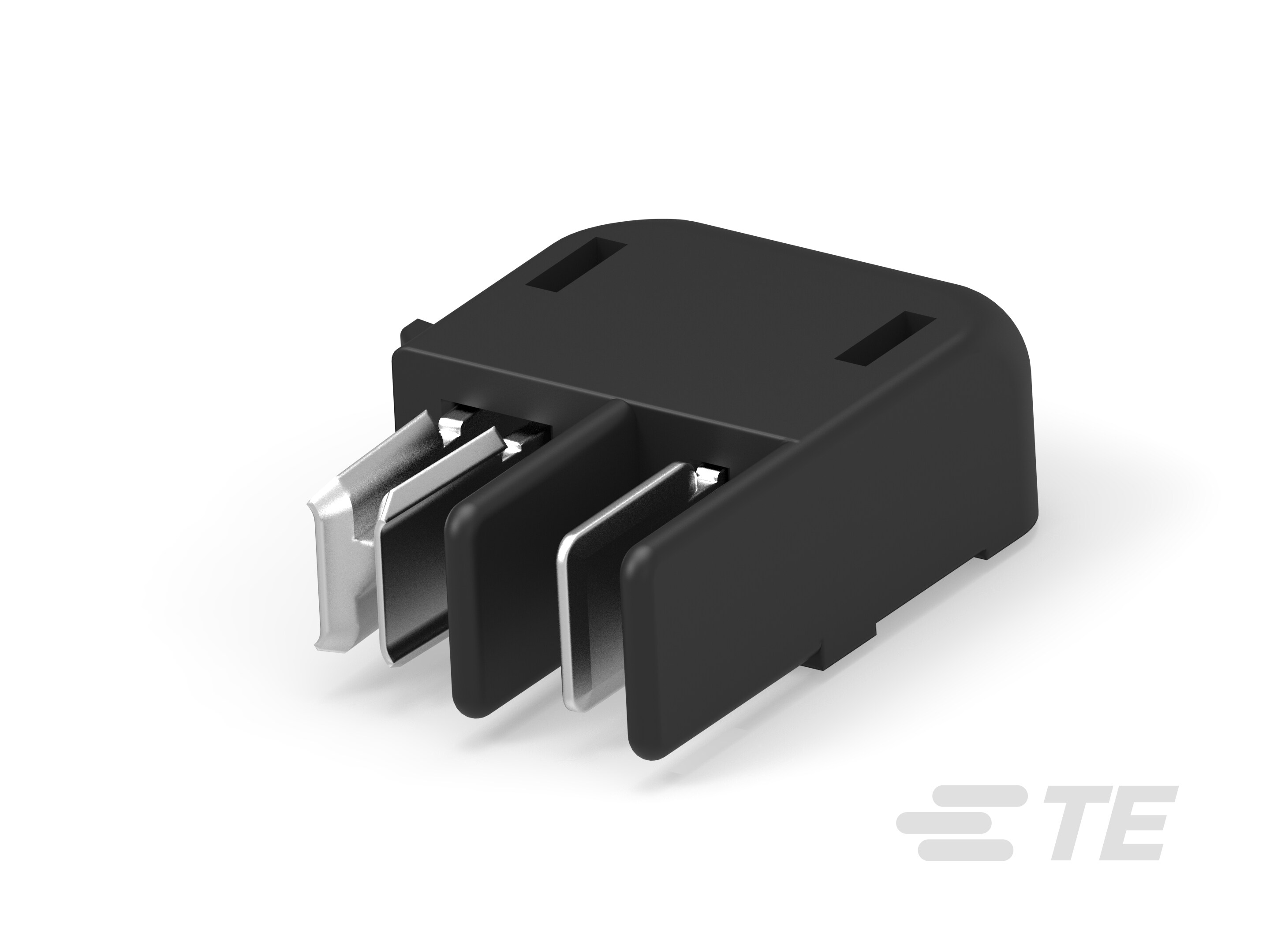

PCB Mount Hermaphroditic Connector, Right Angle, Board-to-Board, 2 Position, 4 mm Centerline, Tin (Sn), Surface Mount, Power & Signal, Black

Technical Specifications

Parameters and characteristics for this part

Specification1-2058703-1
Connector TypeReceptacle, Hermaphroditic, Blade
Contact FinishTin
Contact MaterialCopper Alloy
Fastening TypeLocking Ramp
Housing ColorBlack
Housing MaterialLiquid Crystal Polymer, LCP
Mounting TypeBoard Edge, Surface Mount, Right Angle
Number of Positions2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.157 in
StyleBoard
TerminationSolder
