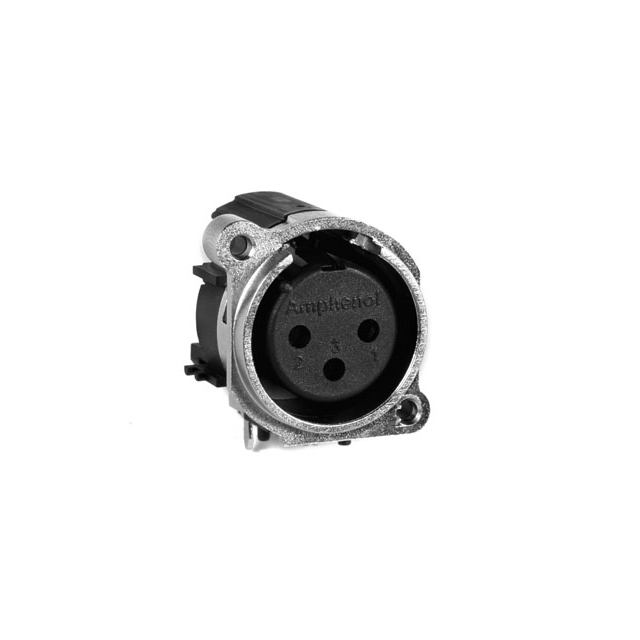

AC3FBHL2-AU-PRE

Active

Amphenol Sine Systems Corp

PLASTIC PANEL MOUNT B TYPE HORIZ

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PLASTIC PANEL MOUNT B TYPE HORIZ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC3FBHL2-AU-PRE	AC3F Series

	-	-
Applications	Audio	Audio
Color	Black, Silver	Black, Silver
Connector Type	Receptacle, Female Sockets	Female Sockets, Plug, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.97 Áin	1.97 Áin
Contact Finish Thickness - Mating	0.05 Ám	0.05 Ám
Contact Material	Bronze	Phosphor Bronze, Bronze
Current Rating (Amps)	6 A	6 - 15 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Guide, Ground	Board Guide, Ground
Ingress Protection	IP40	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Metal, Plastic
Shell Finish	-	Black, Nickel
Shell Material	-	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Unshielded, Shielded
Termination	Solder	Solder

3 POLE XLR FEMALE CHASSIS MOUNT,

Part	Shell Size - Insert	Connector Type	Mounting Feature	Orientation	Contact Material	Color	Shell Material	Applications	Shielding	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Shell Finish	Insert Material	Current Rating (Amps)	Ingress Protection	Features	Mounting Type	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol Sine Systems Corp AC3FBV-AU-PRE
Amphenol Sine Systems Corp AC3FDZB BULK	XLR	Female Sockets, Plug	Flange	Keyed	Phosphor Bronze	Black	Zinc Die Cast	Audio	Unshielded	Metal	-25 °C	75 ░C	UL94 V-0	Latch Lock	Black	Glass Filled, Nylon 6/6, Polyamide (PA66)	15 A	IP40
Amphenol Sine Systems Corp AC3FBHL2-AU-PRE	XLR	Receptacle, Female Sockets	Flange	Keyed	Bronze	Black, Silver		Audio	Unshielded	Plastic	-25 °C	75 ░C	UL94 V-0	Latch Lock		Glass Filled, Nylon 6/6, Polyamide (PA66)	6 A	IP40	Board Guide, Ground	Panel Mount, Right Angle, Through Hole	Gold	Solder	1.97 Áin	0.05 Ám
Amphenol Sine Systems Corp AC3FBV2-AU-PRE
Amphenol Sine Systems Corp AC3FDZ BULK	XLR	Female Sockets, Plug	Flange	Keyed	Phosphor Bronze	Silver	Zinc Die Cast	Audio	Shielded	Metal	-25 °C	75 ░C	UL94 V-0	Latch Lock	Nickel	Glass Filled, Nylon 6/6, Polyamide (PA66)	15 A	IP40	Ground
Amphenol Sine Systems Corp AC3FBVL2-AU-PRE
Amphenol Sine Systems Corp AC3FBVL1-AU-PRE
Amphenol Sine Systems Corp AC3FBV1-AU-PRE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder
