RCH875NP-121K
ActiveSumida America Components Inc.
FIXED IND 120UH 500MA 360MOHM TH
RCH875NP-121K
ActiveSumida America Components Inc.
FIXED IND 120UH 500MA 360MOHM TH
Description
General part information
RCH875NP-121K

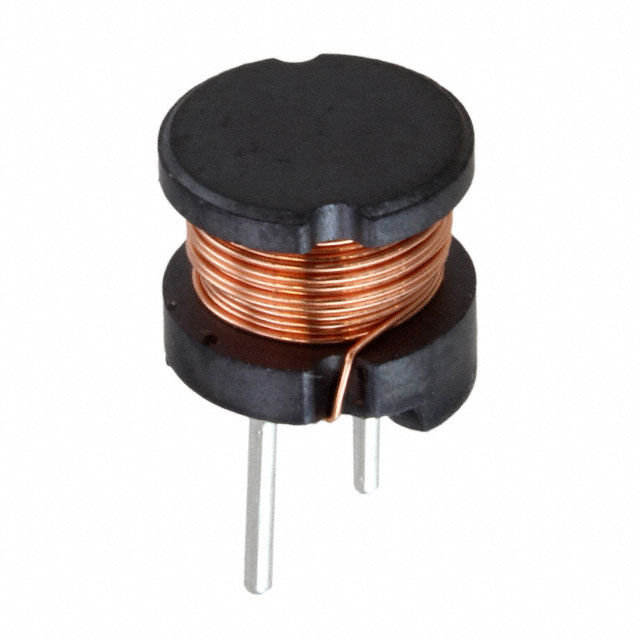

120 µH Unshielded Drum Core, Wirewound Inductor 500 mA 360mOhm Max Radial, Vertical Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | RCH875NP-121K |
|---|---|
| Current - Saturation (Isat) | 0.81 mA |
| Current Rating | 0.5 A |
| DC Resistance (DCR) (Max) | 360 mOhm |
| Height - Seated (Max) | 0.295 in |
| Inductance | 120 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical Cylinder (Open), Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.307 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
