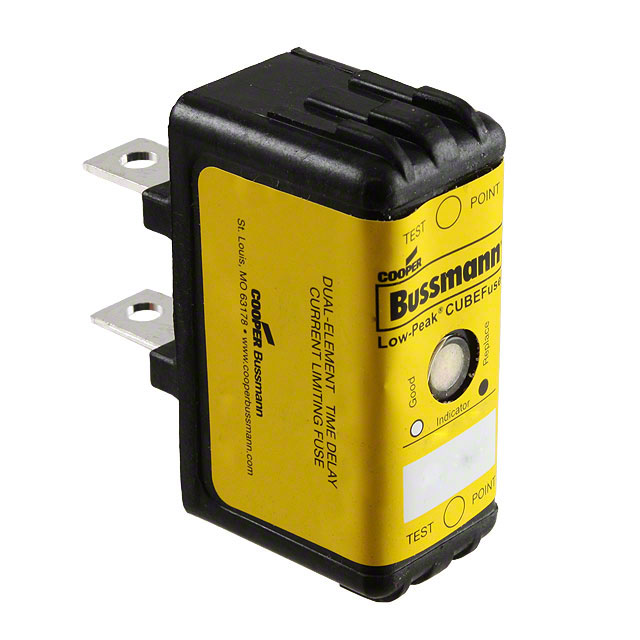

TCF10
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, LOW-PEAK, CUBEFUSE TCF SERIES, 10 A, 600 VAC, 300 VDC
TCF10
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, LOW-PEAK, CUBEFUSE TCF SERIES, 10 A, 600 VAC, 300 VDC
Description
General part information
TCF10
10A 600 VAC 300 VDC Fuse Rectangular Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | TCF10 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 300 kA |
| Breaking Capacity (DC) | 100 kA |
| Current Rating | 10 A |
| Features | Indicating |
| Fuse Type | Rectangular |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module, Blade Type |
| Response Time | Slow Blow |
| Size / Dimension Height | 1.27 in |
| Size / Dimension Length | 1.88 in |
| Size / Dimension Width | 0.75 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 300 V |
