MC100LVEP05DR2G

Active

ON Semiconductor

AND/NAND GATE

Search across all available documentation for this part.

Active

ON Semiconductor

AND/NAND GATE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	139	$ 2.16

General part information

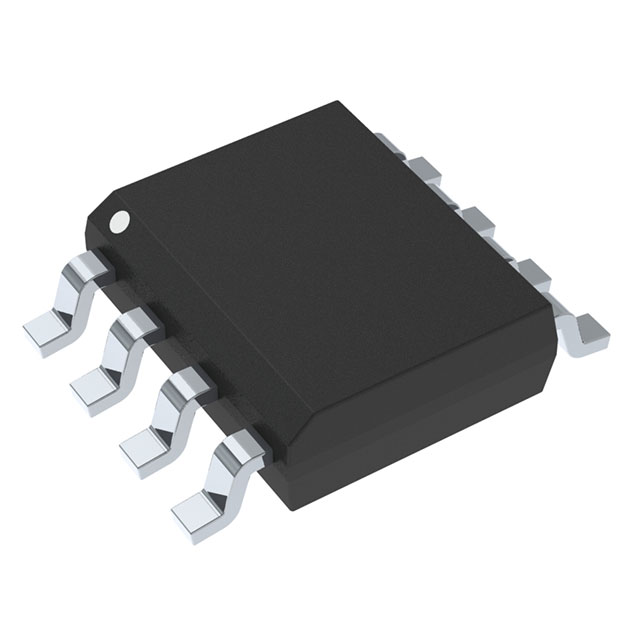

AND/NAND Gate Configurable 1 Circuit 2 Input (1, 1) Input 8-SOIC

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

IC GATE AND/NAND ECL 2INP 8SOIC

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Supplier Device Package	Mounting Type	Logic Type	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Inputs
ON Semiconductor MC100LVEP05DG	Differential	85 °C	-40 °C	1	8-SOIC	Surface Mount	AND/NAND Gate	8-SOIC	3.9 mm	0.154 in	3.6 V	2.375 V	2 Input
ON Semiconductor MC100LVEP05DR2G	Differential	85 °C	-40 °C	1	8-SOIC	Surface Mount	AND/NAND Gate	8-SOIC	3.9 mm	0.154 in	3.6 V	2.375 V	2 Input
ON Semiconductor MC100LVEP05MNTXG	Differential	85 °C	-40 °C	1	8-DFN (2x2)	Surface Mount	AND/NAND Gate	8-VFDFN Exposed Pad			3.6 V	2.375 V	2 Input
