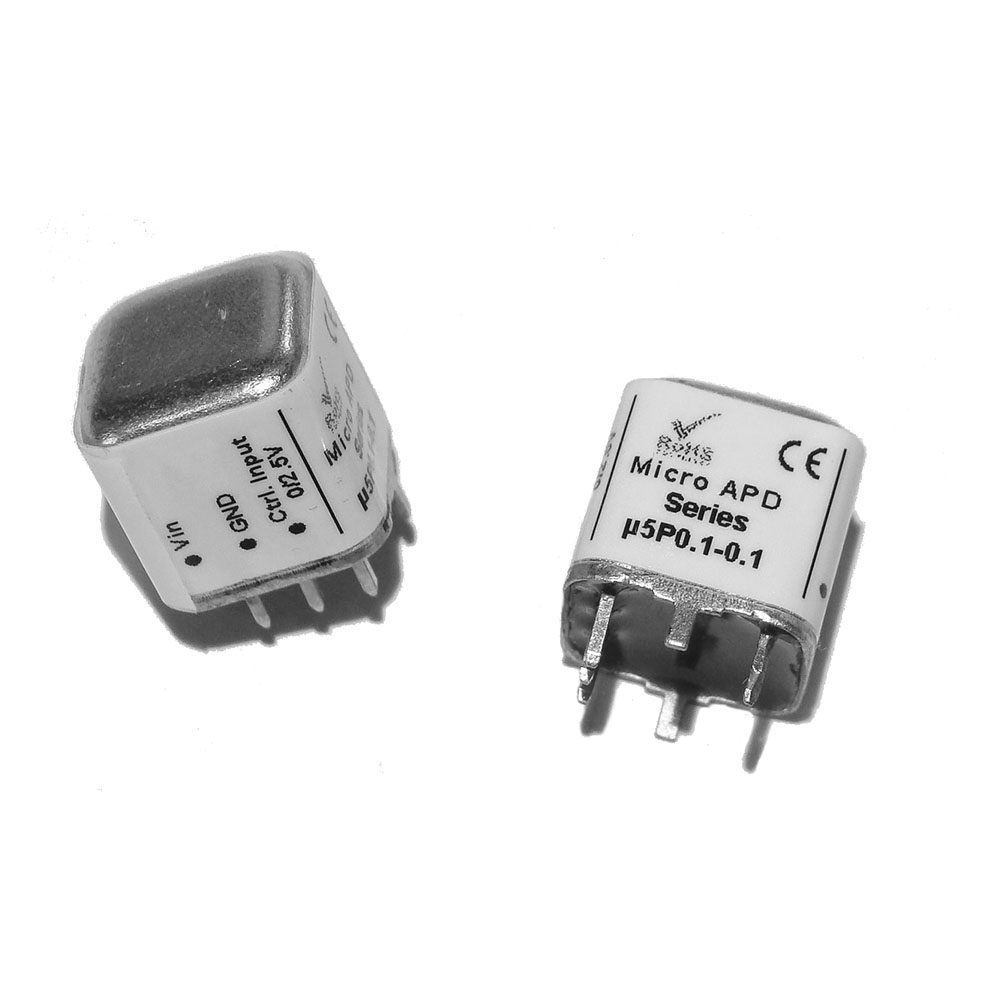

MICRO5P0.12-0.1
ActiveSDS HIGH VOLTAGE
DCDC CONV. 5V TO +125V 100MW
MICRO5P0.12-0.1
ActiveSDS HIGH VOLTAGE
DCDC CONV. 5V TO +125V 100MW
Description
General part information
MICRO5P0.12-0.1
DCDC CONV. 5V TO +125V 100MW
Technical Specifications
Parameters and characteristics for this part
| Specification | MICRO5P0.12-0.1 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 800 µA |
| Features | SCP |
| Mounting Type | Vertical, Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 100 mW, 1 W |
| Size / Dimension Height | 0.43 in |
| Size / Dimension Length | 0.43 in |
| Size / Dimension Width | 0.43 in |
| Type | High Voltage - Non-Isolated Module |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Output 1 (Max) | 125 V |
| Voltage - Output 1 (Min) | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
