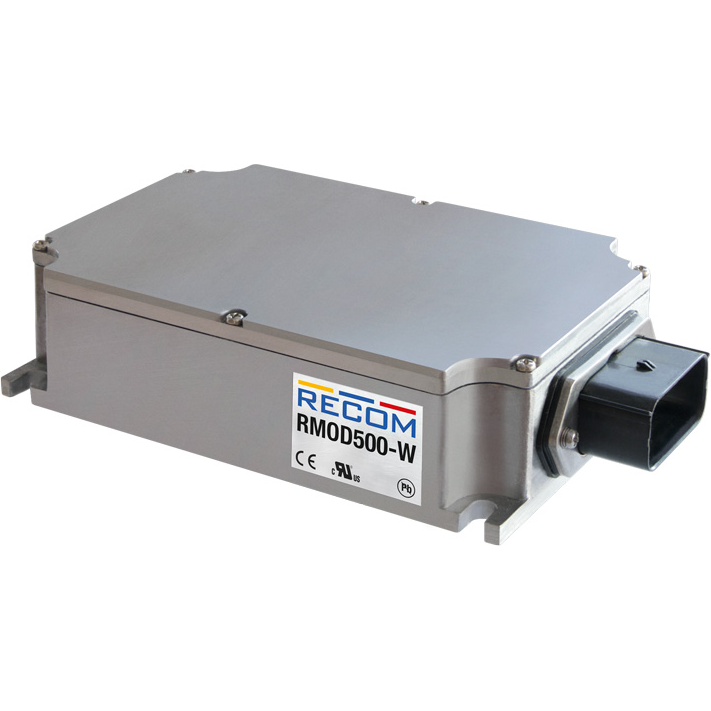

RECOM Power GmbH-RMOD500-60-13.7SW DC to DC Converter and Switching Regulator Module Module DC-DC 48VIN 1-OUT 13.7V 36.5A 500W 12-Pin Box

RMOD500-60-13.7SW

Obsolete
Recom Power

ISOLATED CHASSIS MOUNT DC/DC CONVERTER, ITE, MODULE, 500 W, 1 OUTPUT, 13.7 V

Find alt
RECOM Power GmbH-RMOD500-60-13.7SW DC to DC Converter and Switching Regulator Module Module DC-DC 48VIN 1-OUT 13.7V 36.5A 500W 12-Pin Box

RMOD500-60-13.7SW

Obsolete
Recom Power

ISOLATED CHASSIS MOUNT DC/DC CONVERTER, ITE, MODULE, 500 W, 1 OUTPUT, 13.7 V

Find alt

Description

General part information

RMOD500-60-13.7SW

RMOD500-60-13.7SW is RMOD500-W DC-DC converter is ideal for use in all off-highway electric vehicles. This has an extremely robust plug & play module with 500W, which generates the isolated Vout 12.4 / 13.7 / 24.5VDC low voltage network from the traction battery level. It has wide input voltage range 32-96V covers the common 48V and 80V battery voltages in this off-highway segment. This product is waterproof and dust-proof housing construction, the devices can directly be connected mechanically and thermally to the chassis and operate reliably even under the most adverse conditions. It also includes an input reverse polarity, input UVLO, output OCP, SCP, OVP, and OTP protections. Approved by UL62368-1 certified, CAN/CSA-C22.2 No. 62368-1 certified, EN62368-1, CAN/CSA-C22.2 NO. 62368-1:2014, EN62368-1:2014 + A11:2017.

Technical Specifications

Parameters and characteristics for this part

SpecificationRMOD500-60-13.7SW
ApplicationsITE (Commercial)
Approval AgencycURus, CE
Current - Output (Max)36.5 A
Efficiency89.5 %
Mounting TypeChassis Mount
Number of Outputs1
Operating Temperature (Max)90 °C
Operating Temperature (Min)-40 °C
Power (Watts)500 W
Size / Dimension Height1.77 in
Size / Dimension Length7.8 in
Size / Dimension Width4.45 in
Standard Number62368-1
TypeEnclosed
Voltage - Input (Max)96 V
Voltage - Input (Min)32 V
Voltage - Isolation2.25 kV
Voltage - Output 113.7 V
