HG410P-NF
ActivePasternack
400 TO 470 MHZ, 10 DBI HEAVY-DUT
HG410P-NF
ActivePasternack
400 TO 470 MHZ, 10 DBI HEAVY-DUT
Description
General part information
HG410P-NF

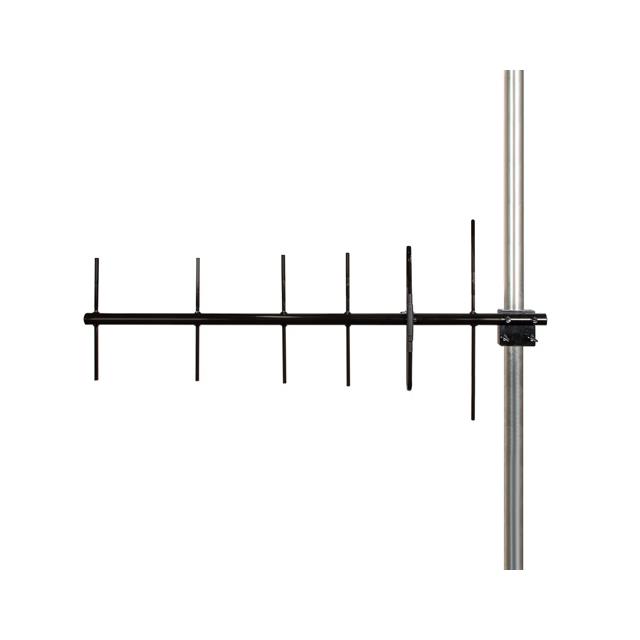

RF ANTENNA CDMA Yagi N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG410P-NF |
|---|---|
| Antenna Type | Yagi |
| Applications | CDMA |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 435 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 470 MHz |
| Frequency Range (Min) | 400 MHz |
| Gain | 10 dBi |
| Height (Max) | 38.39 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | General ISM |
| Termination | N Type Female |
| VSWR | 1.7 |
