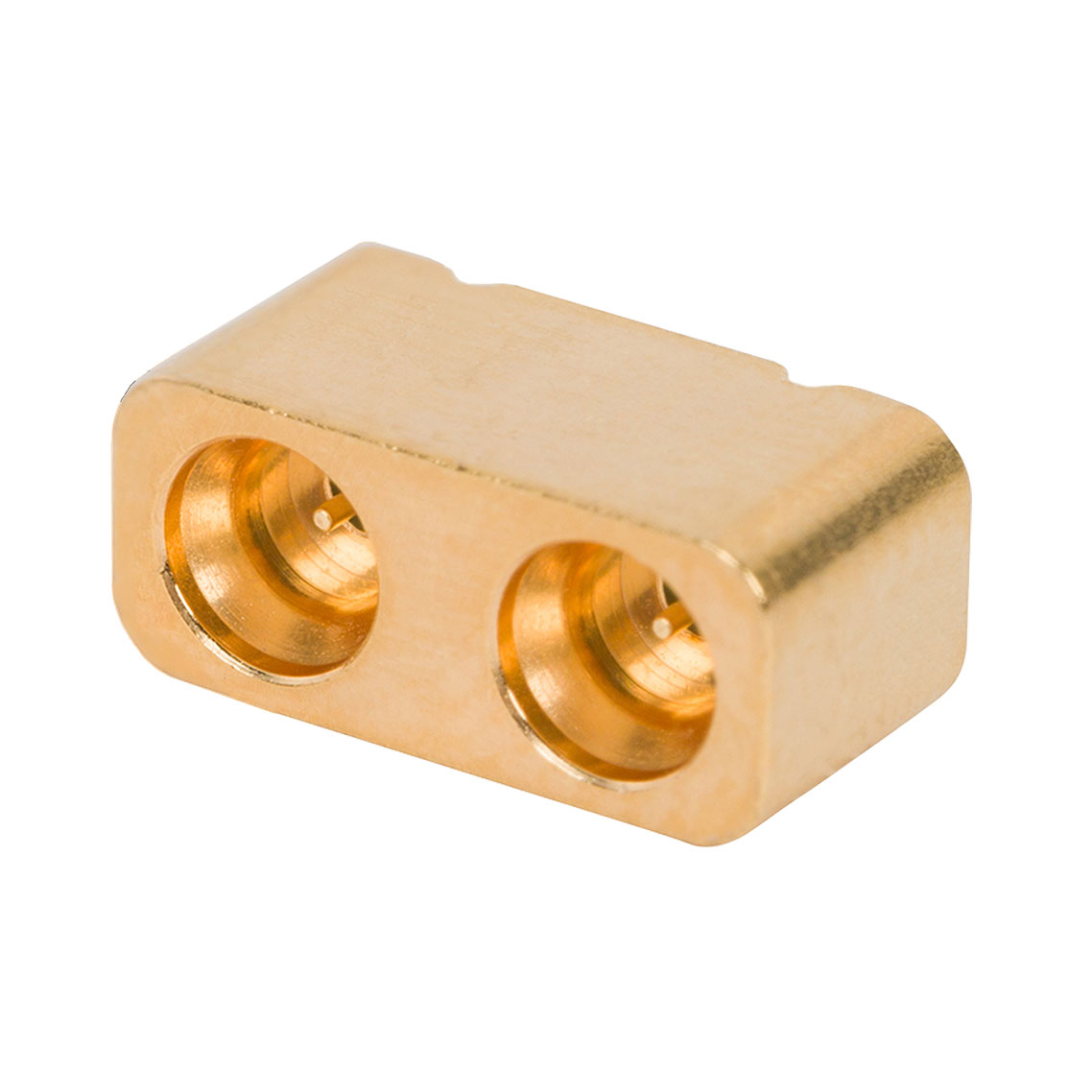

9311-20025
ActiveMcGill Microwave Systems
SMPS MALE PCB SURFACE MOUNT, 2 P
9311-20025
ActiveMcGill Microwave Systems
SMPS MALE PCB SURFACE MOUNT, 2 P
Description
General part information
9311-20025
SMPS Connector Plug, Male Pin 50 Ohms Surface Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 9311-20025 |
|---|---|
| Body Finish | Gold |
| Body Material | Nickel-Cobalt |
| Center Contact Material | Nickel-Cobalt |
| Center Contact Plating | Gold |
| Connector Style | SMPS |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Glass |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max | 50 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mating Cycles | 100 cycles |
| Mounting Type | Surface Mount |
| Number of Ports | 2 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
