SP-2544
ActiveSame Sky (Formerly CUI Devices)

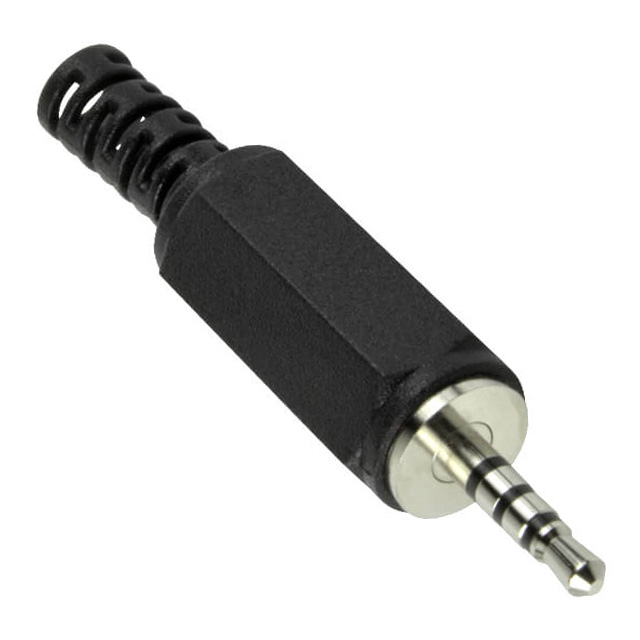

CONN 2.5MM STEREO PLUG PL 4 POS CRIMP ST CABLE MOUNT 4 TERMINAL 1 PORT
SP-2544
ActiveSame Sky (Formerly CUI Devices)
CONN 2.5MM STEREO PLUG PL 4 POS CRIMP ST CABLE MOUNT 4 TERMINAL 1 PORT
Description
General part information
SP-2544
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-2544 |
|---|---|
| Actual Diameter | 0.091 in |
| Body Color | Black, Silver |
| Body Material | Brass |
| Cable Opening | 0.157 in |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Current Rating | 1 A |
| Features | Strain Relief, Cover |
| Gender | Male |
| Housing Material | PVC, Polyvinyl Chloride |
| Includes | Cover, Connector |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (Headphone - Miniature) | 2.5 mm |
| Industry Recognized Mating Diameter (Headphone - Sub Mini) | 2.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Miniature, Sub Mini |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.433 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 4 Conductors |
| Number of Contacts | 4 Contacts |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Signal Lines | 4 Conductor, TRRS, Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VAC |
