2342071-5
ActiveTE Connectivity AMP Connectors

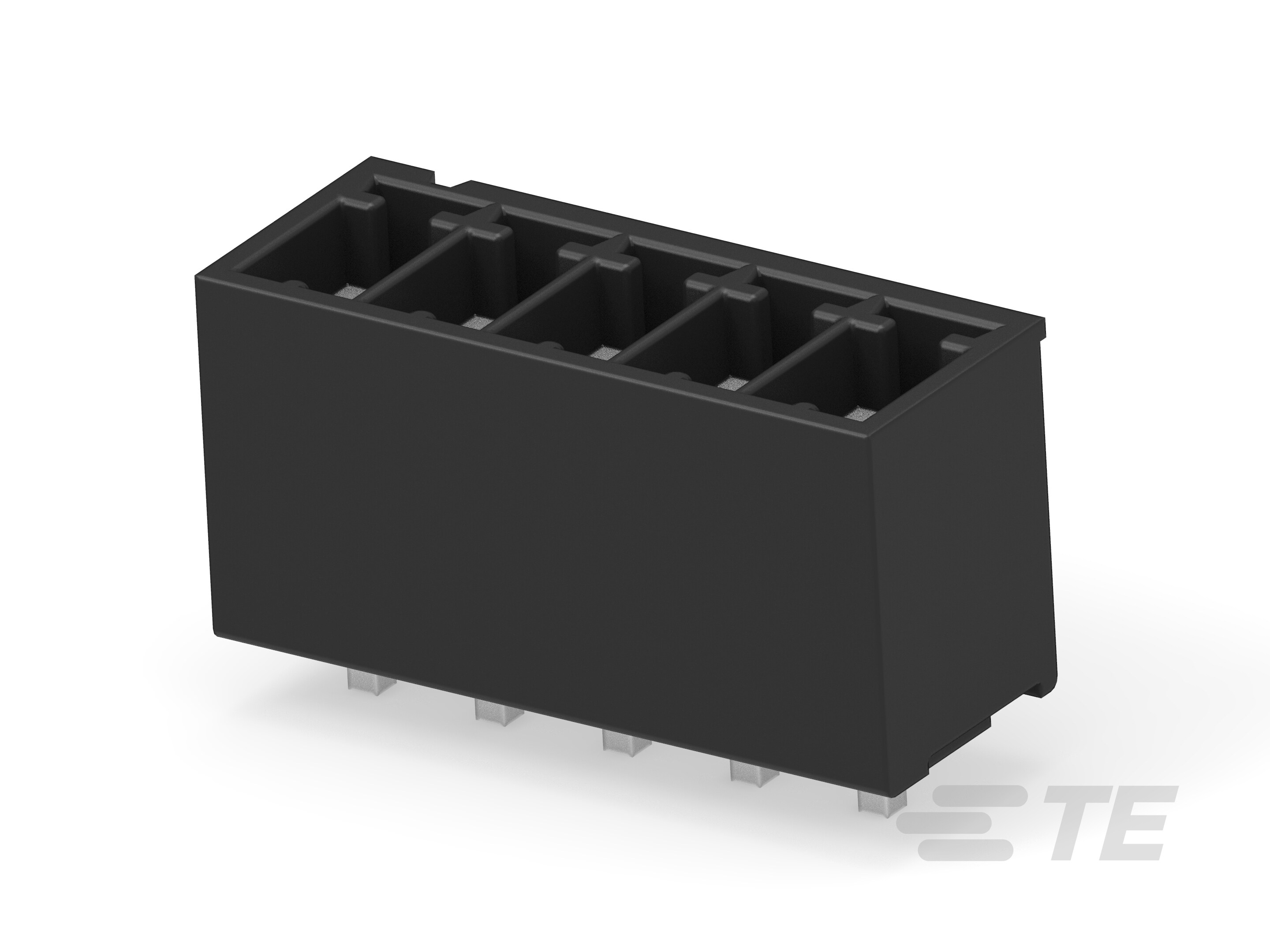

PLUGGABLE TERMINAL BLOCKS 5POS HDR ST,HT 3.5MM PITCH,TL 1.9MM
2342071-5
ActiveTE Connectivity AMP Connectors
PLUGGABLE TERMINAL BLOCKS 5POS HDR ST,HT 3.5MM PITCH,TL 1.9MM
Description
General part information
2342071-5
5 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 2342071-5 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Current - UL | 11 A |
| Features | High Temp Housing |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 5 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
